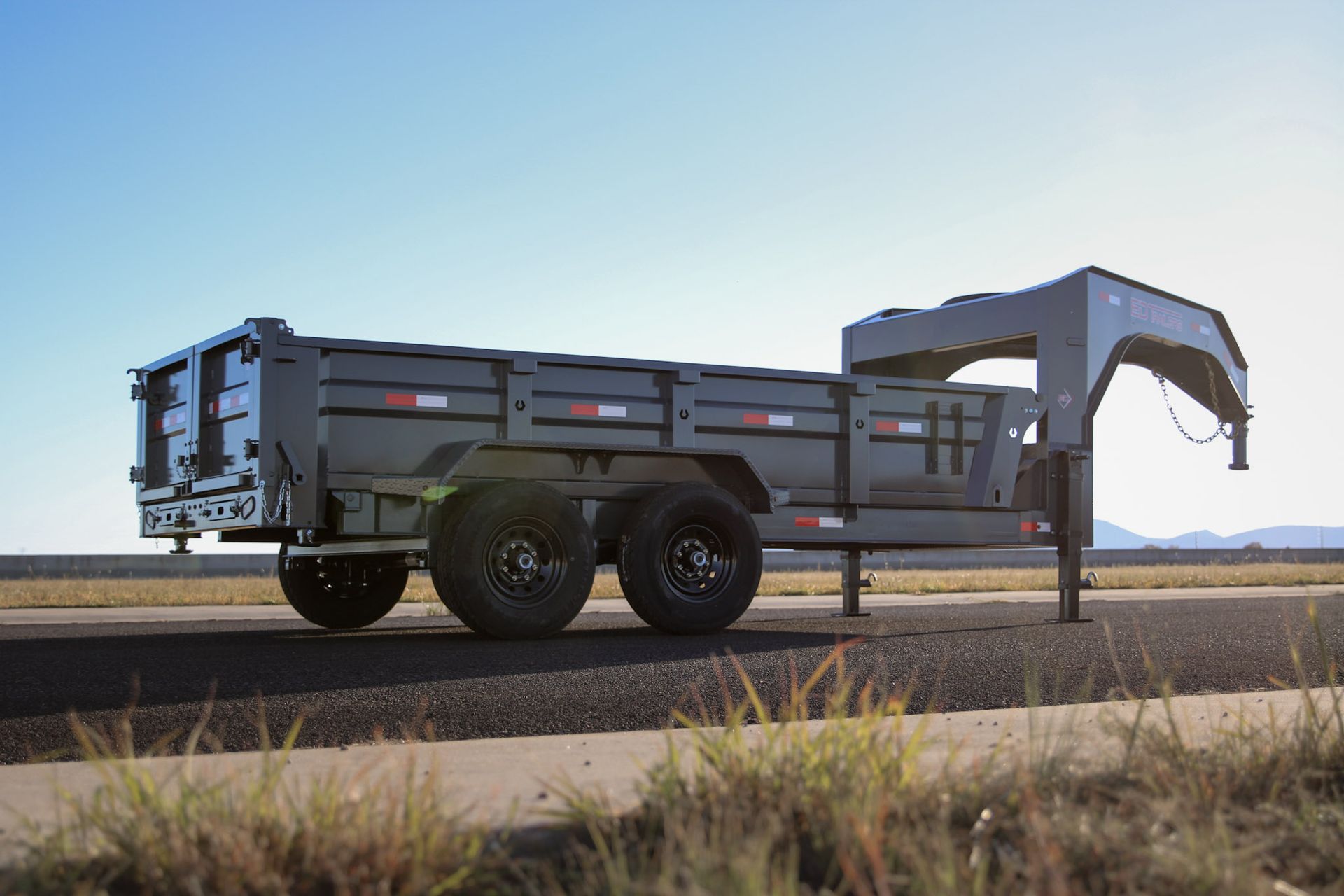

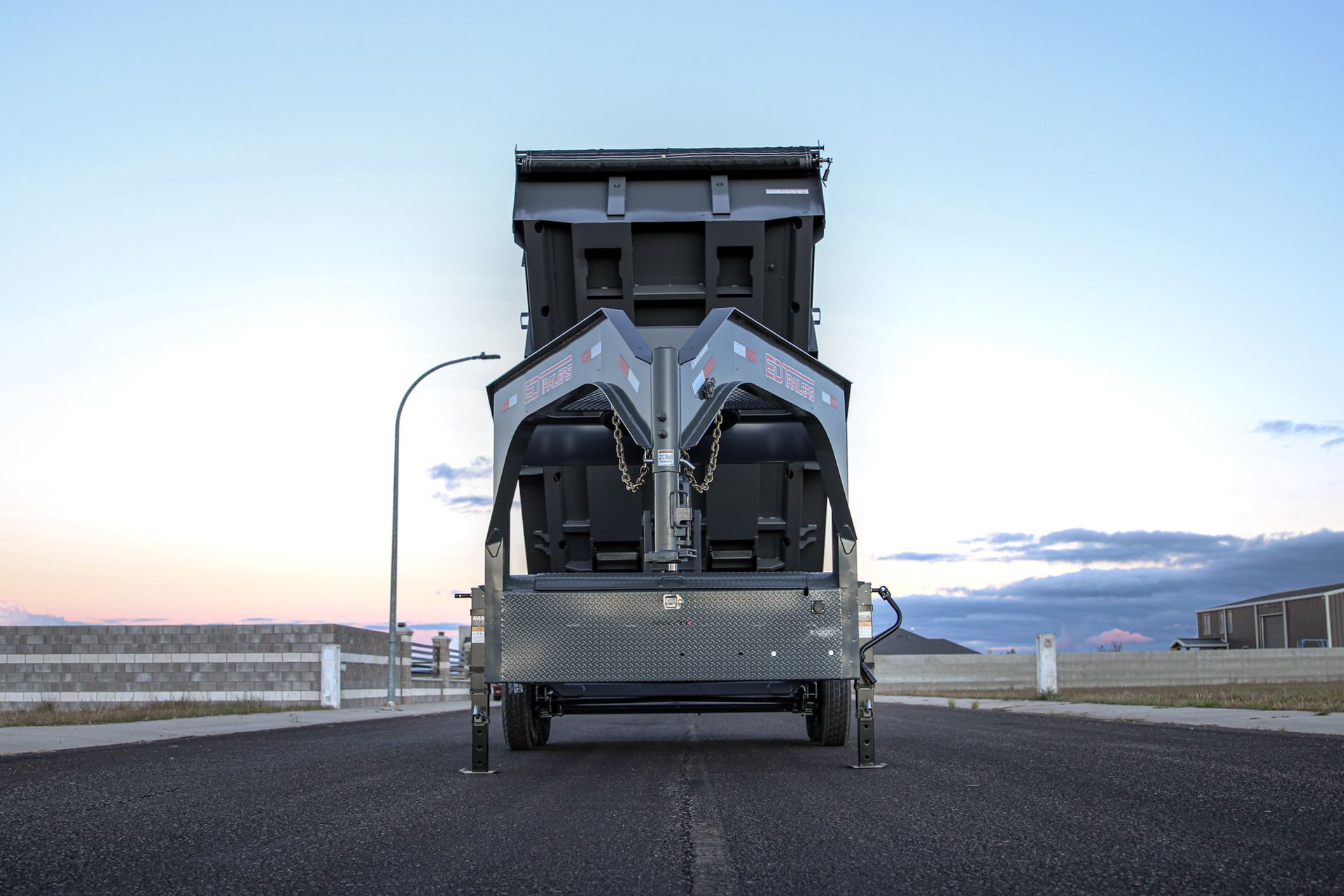

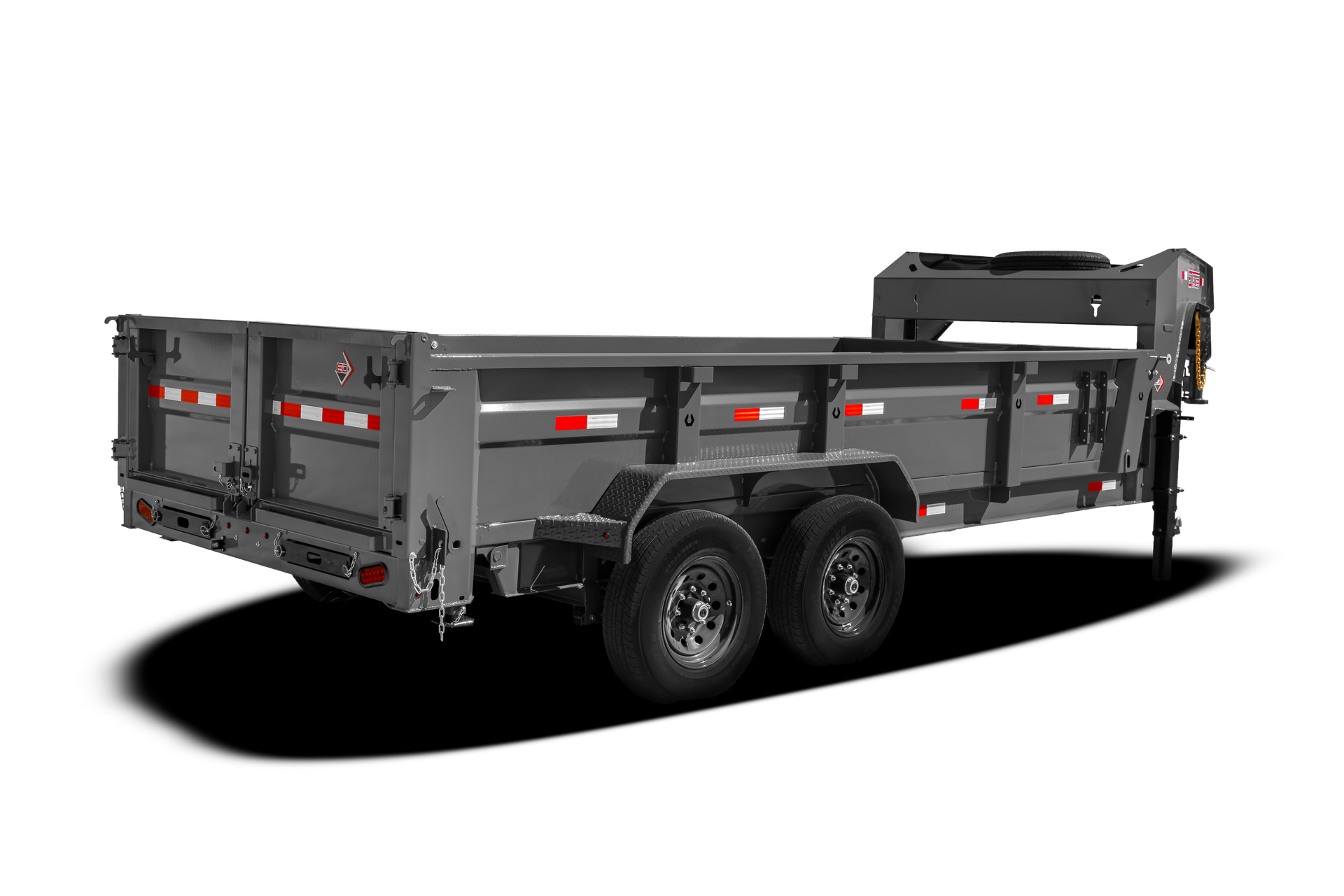

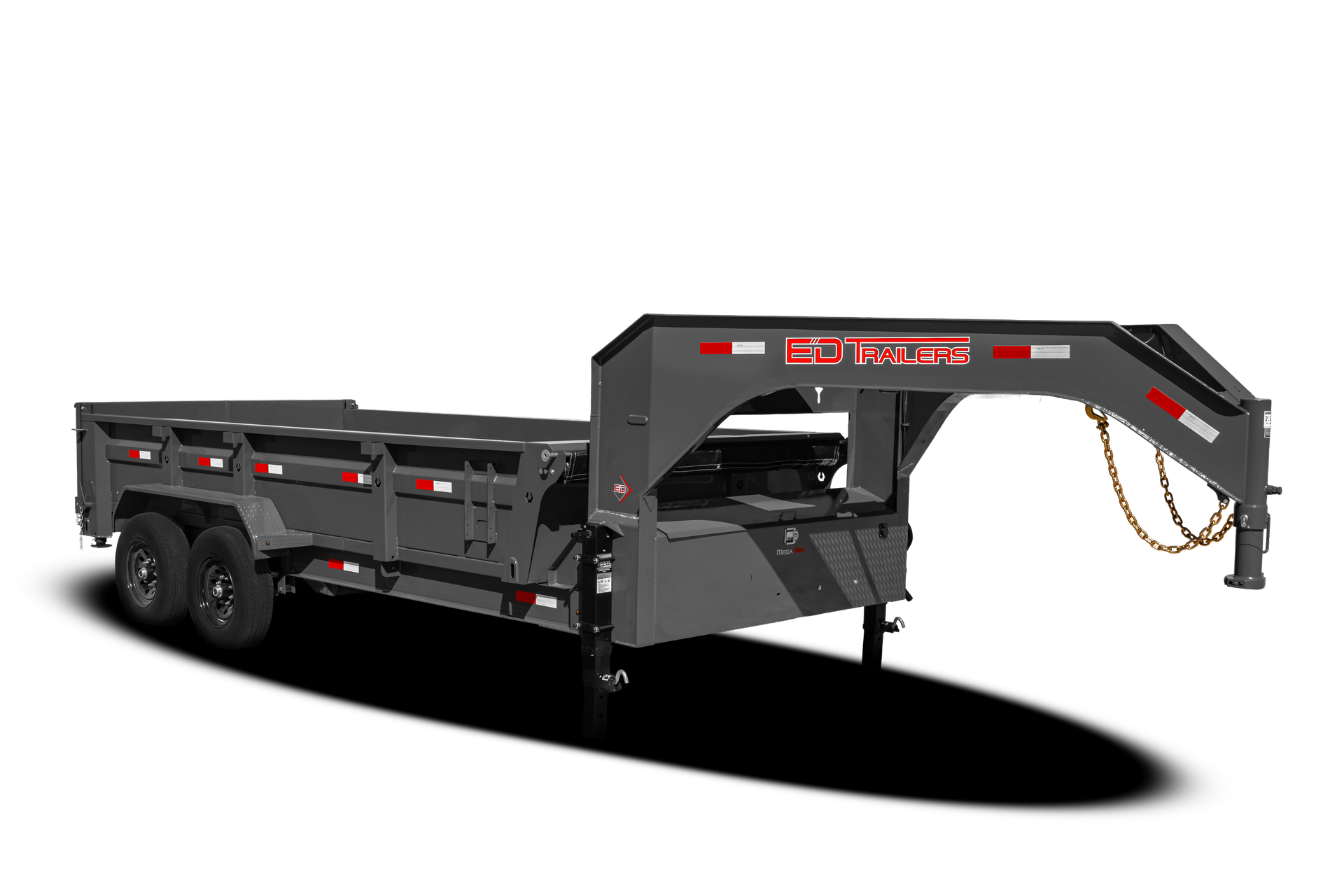

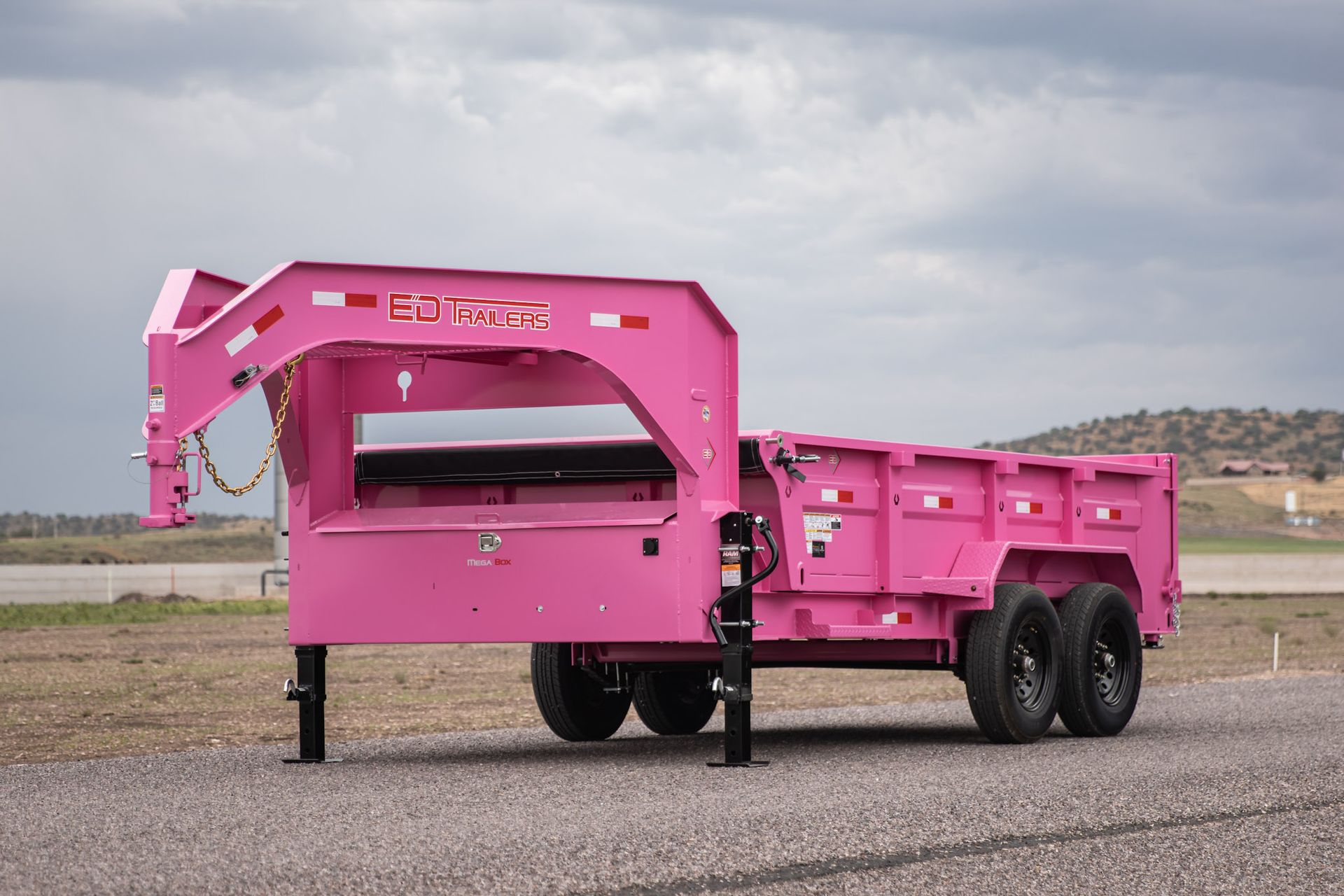

LPT83-GN LOW PRO DUMP TRAILER
QUICK OVERVIEW
GOOSENECK
LENGHTS: 14' 16'
WIDTH: 83"
SIDE HEIGHTS: 2' 3' 4'
PULL TYPE: GOOSENECK
AXLE RATING: 7,000 Lbs
GVWR: 14,000 LBS
STANDARD FEATURES
GOOSENECK
One Piece Engineer Neck
FRAME
8" x 10 Lbs I-Beam Frame
TOOLBOX
Lockable Toolbox (Houses Battery and Pump)
COUPLER
2 5/15" 25K Coupler
JACK
2 - 10,000 Lbs Drop Leg Jack
SAFETY CHAINS
3/8" G70 Safety Chains
BED WIDTH
83"
SIDE WALL
2' 3' 4' High Sides, 12GA. Side Walls
FLOORING
7GA. Steel Floor
D-RINGS
4 D-Rings Welded Inside Box
GATE
2 Way Gate (Barn Doors & Spreader Gate)
RAMPS
6' Slide In Ramps
SPARE
Drop Down Spare Tire Mount
TARP
Manual Tarp Kit
SINGLE CYLINDER
6" X 21" Cylinder
HYDRAULIC PUMP
2 Button Hydraulic Pump (Power Up / Down)
TIRES
4 - ST235/80/R16 Tires
RIMS
16" Black Spoke Wheels
AXLES
2 - 7,000 Lbs Bostail Electric Brake Axles
SUSPENSION
Spring
BATTERY
27 Deep Cycle Battery
LIGHTS
DOT Approved LED Lights
PREP
Sandblast
PAINT
Powdercoat

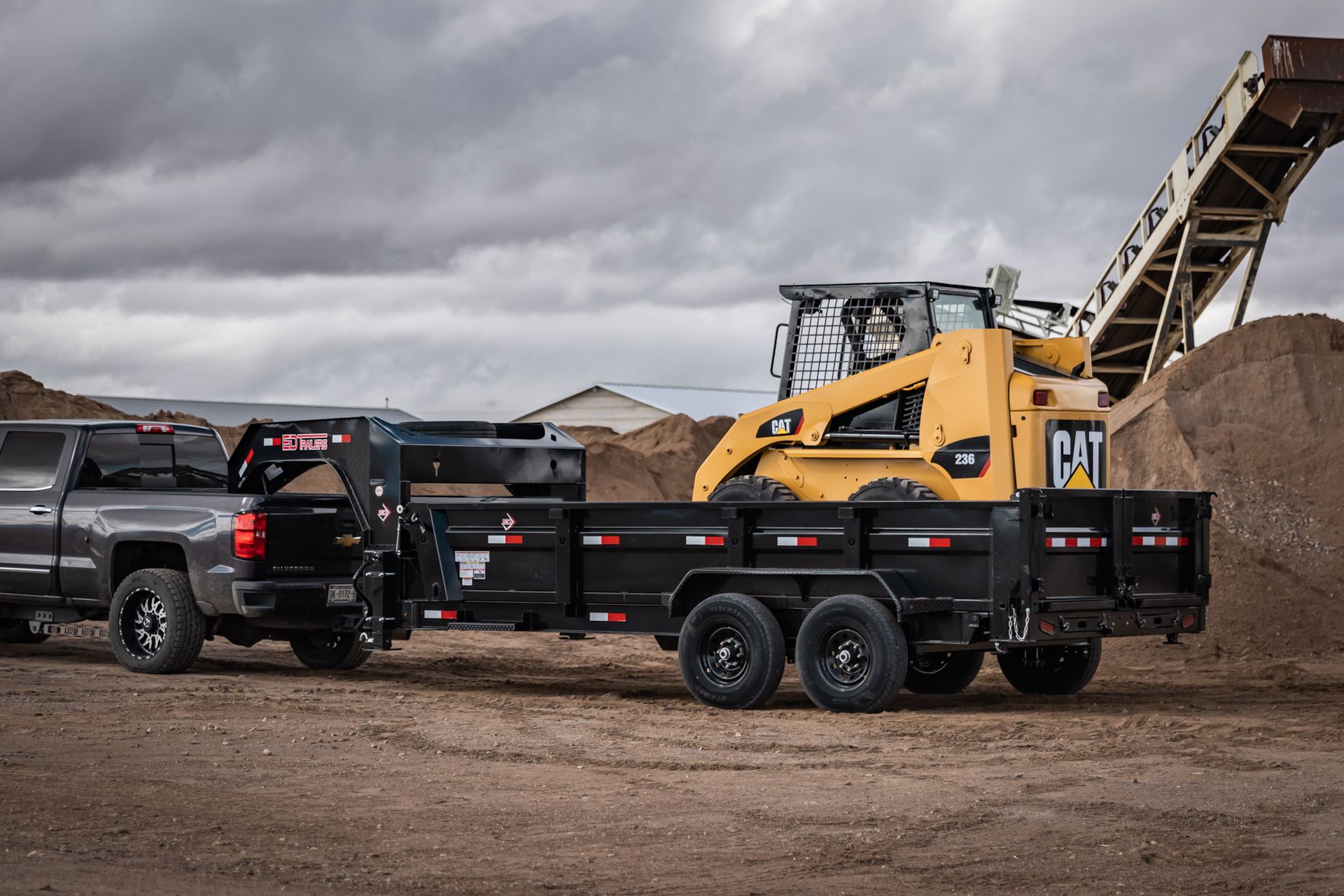

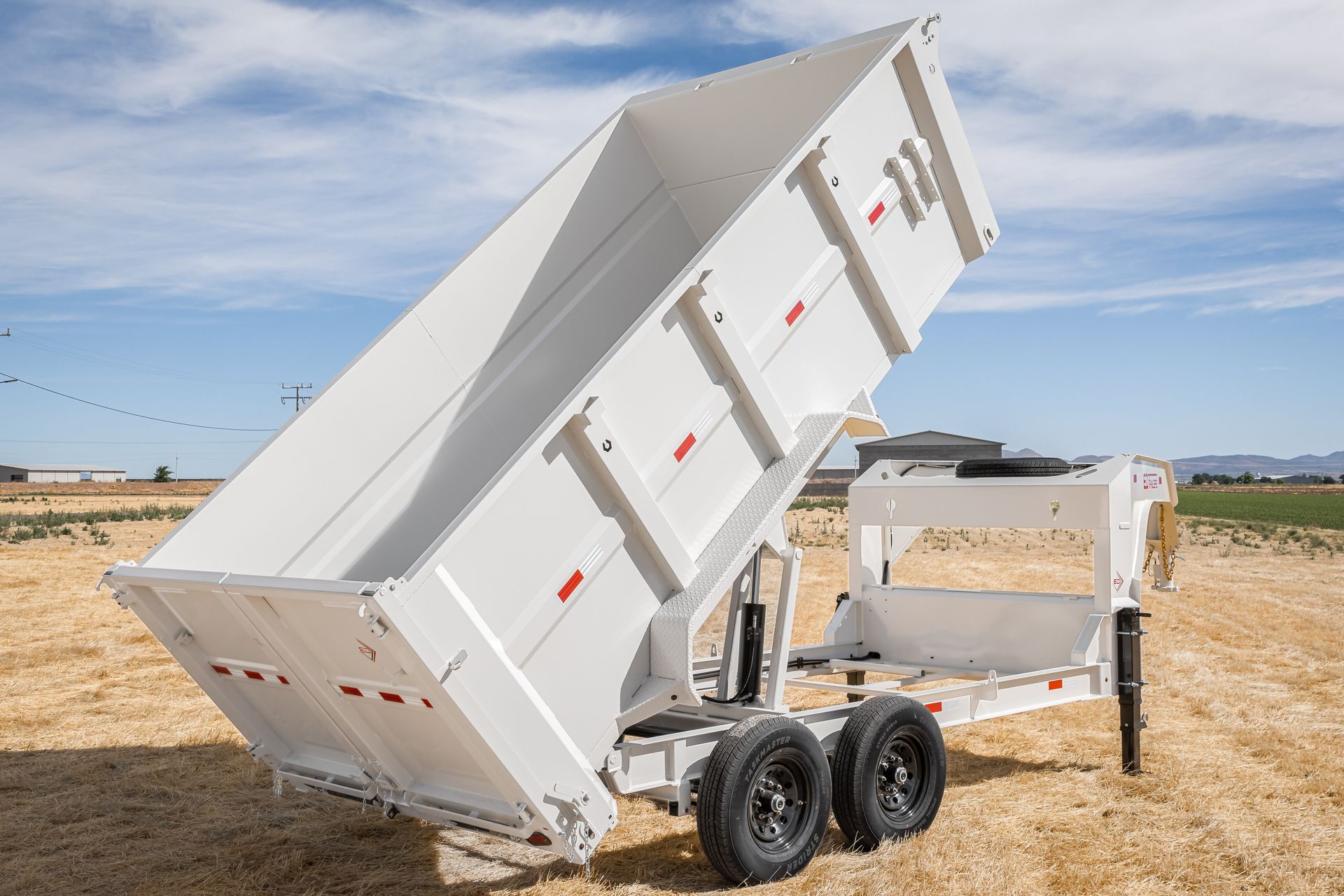

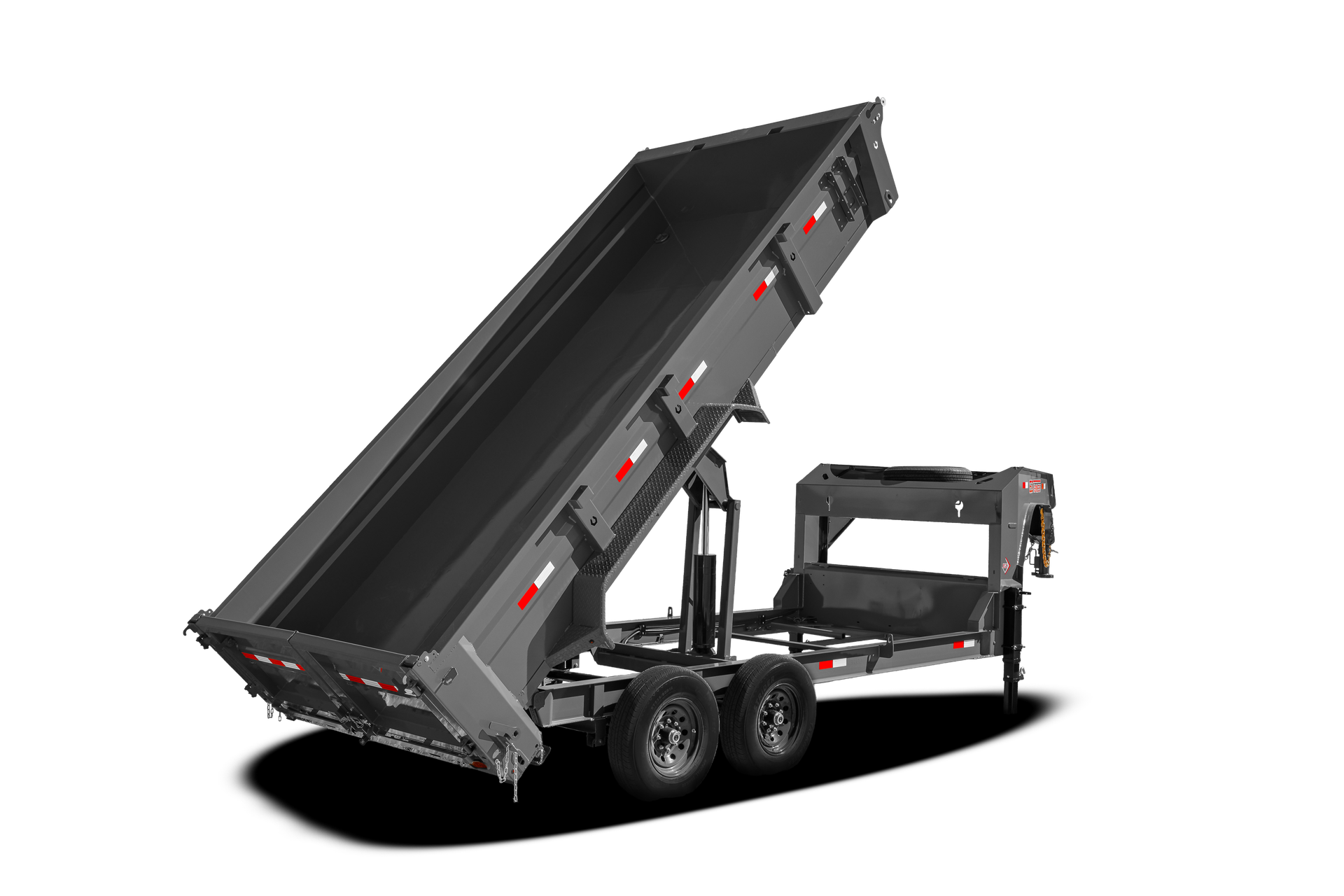

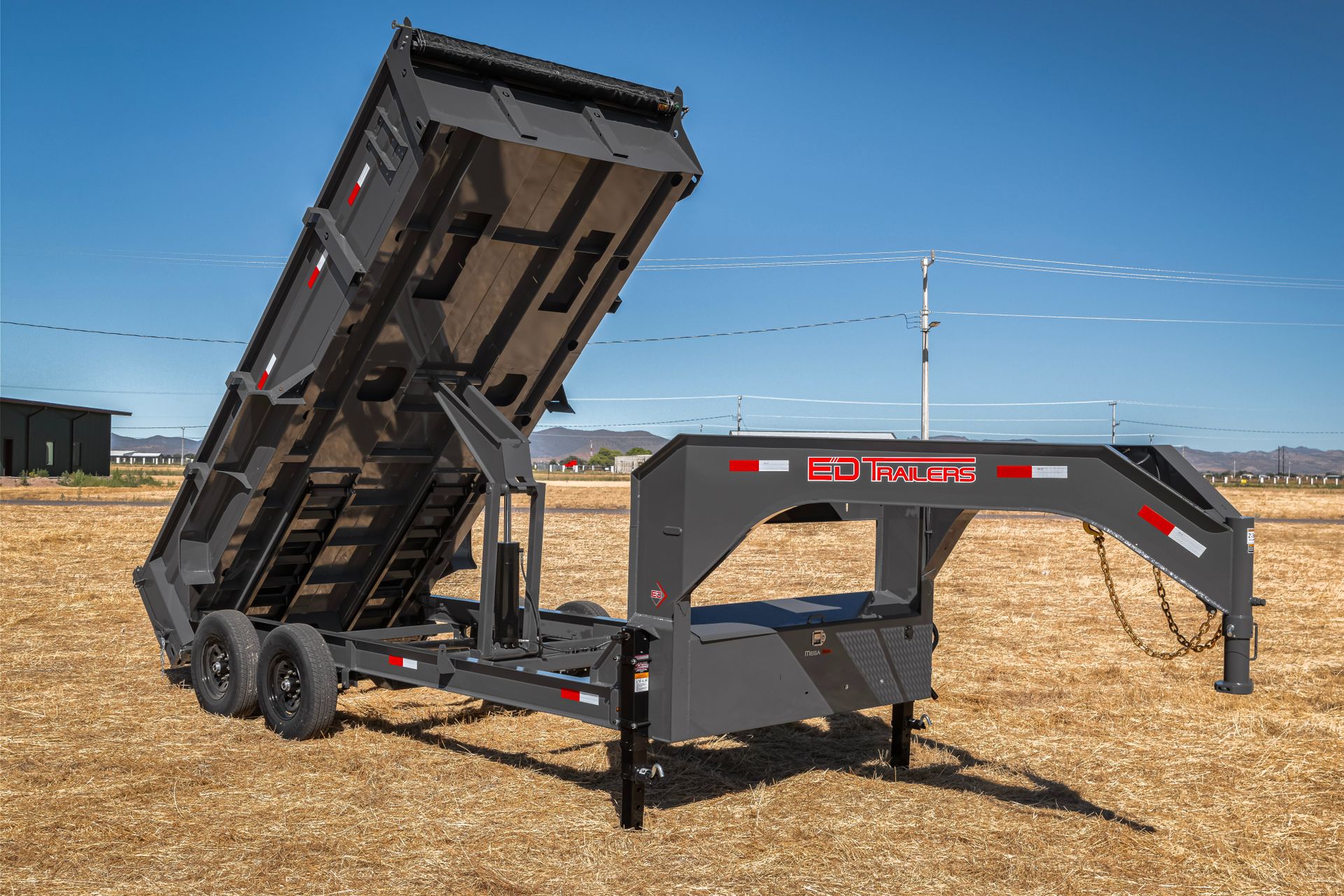

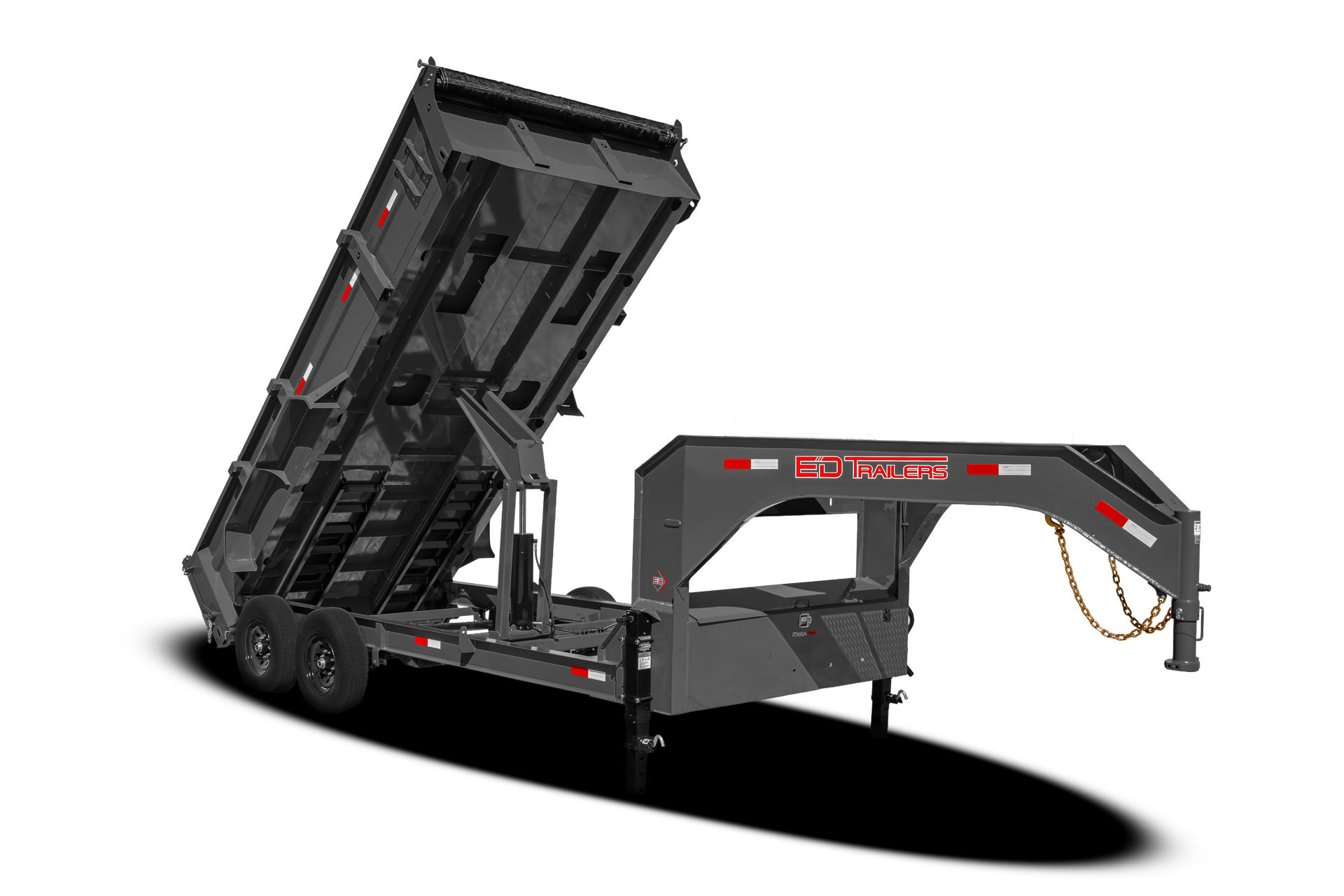

LPT83-GN Low Pro Dump Trailer
The LPT83-GN Gooseneck Dump Trailer is built for heavy-duty hauling with the added stability and control of a gooseneck setup. Designed to handle gravel, equipment, debris, and demanding loads, it delivers the strength and capacity needed to keep tough jobs moving efficiently.

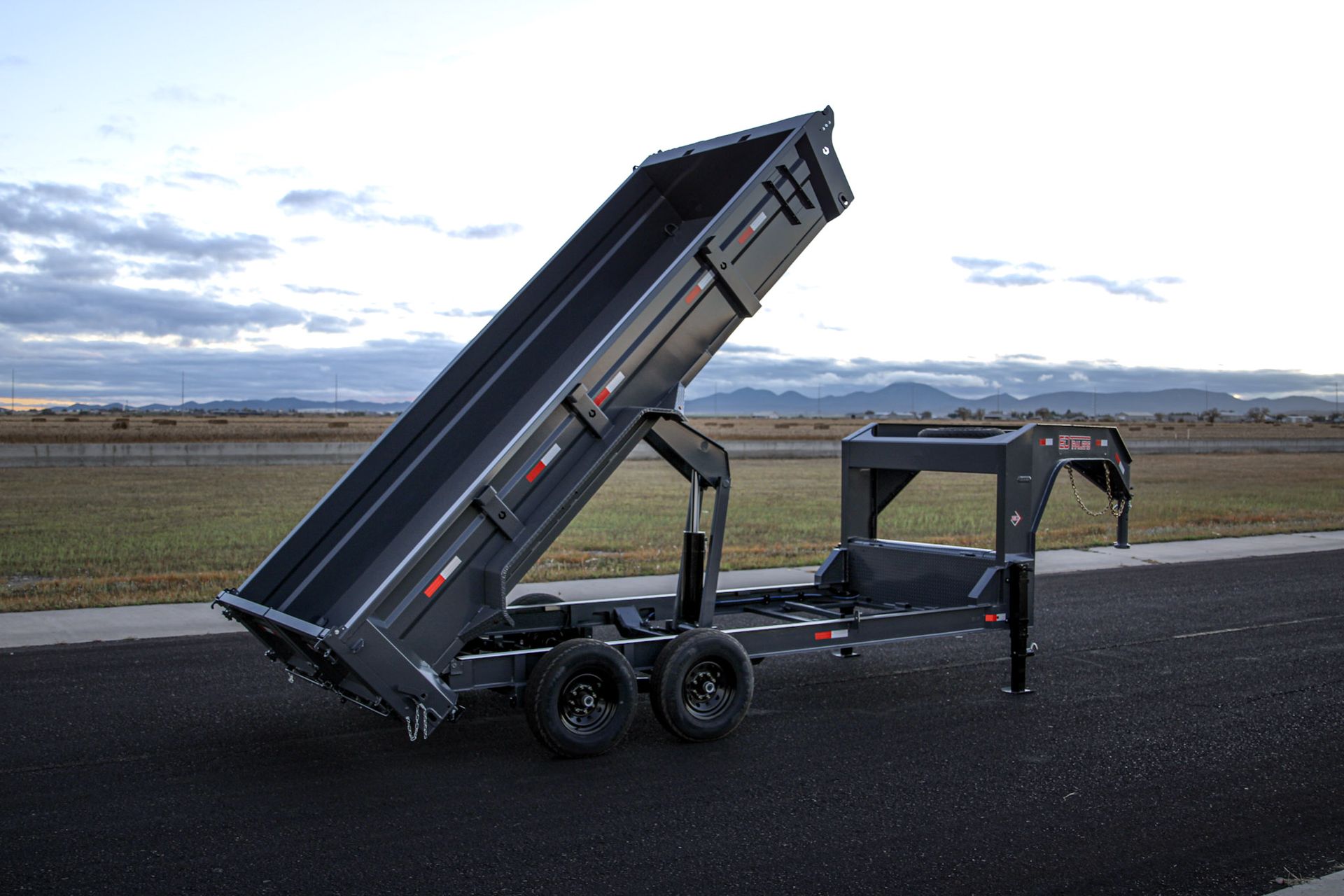

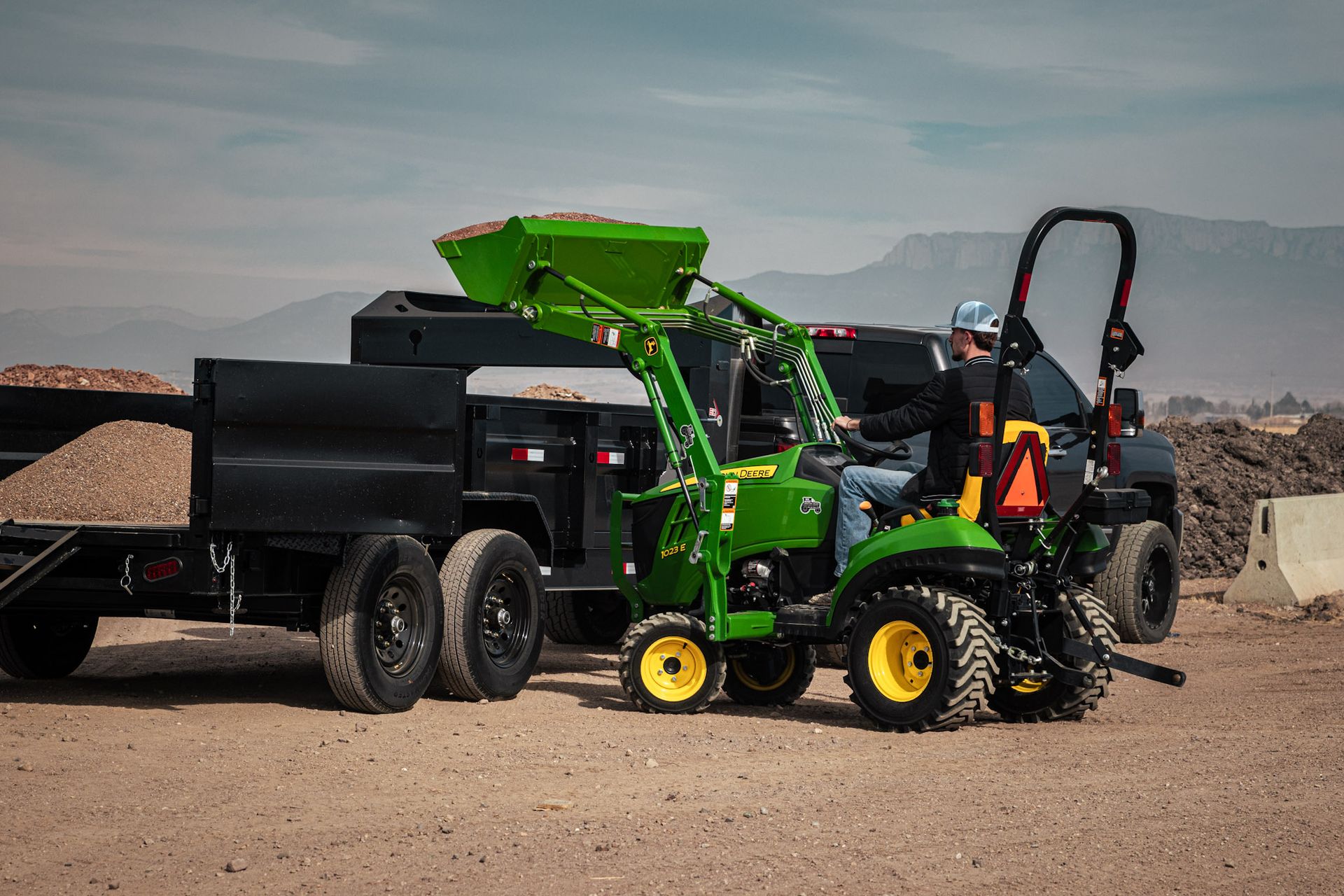

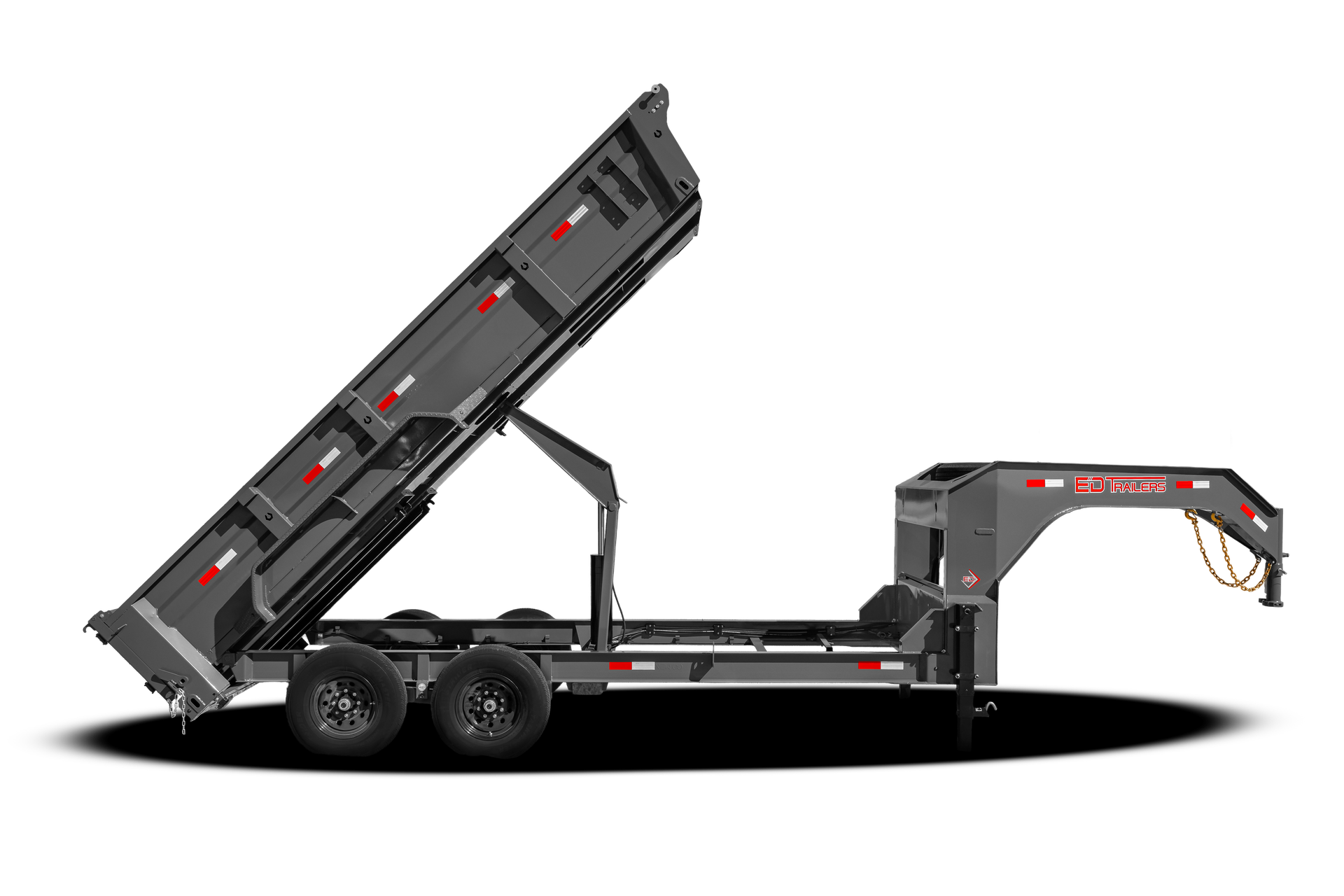

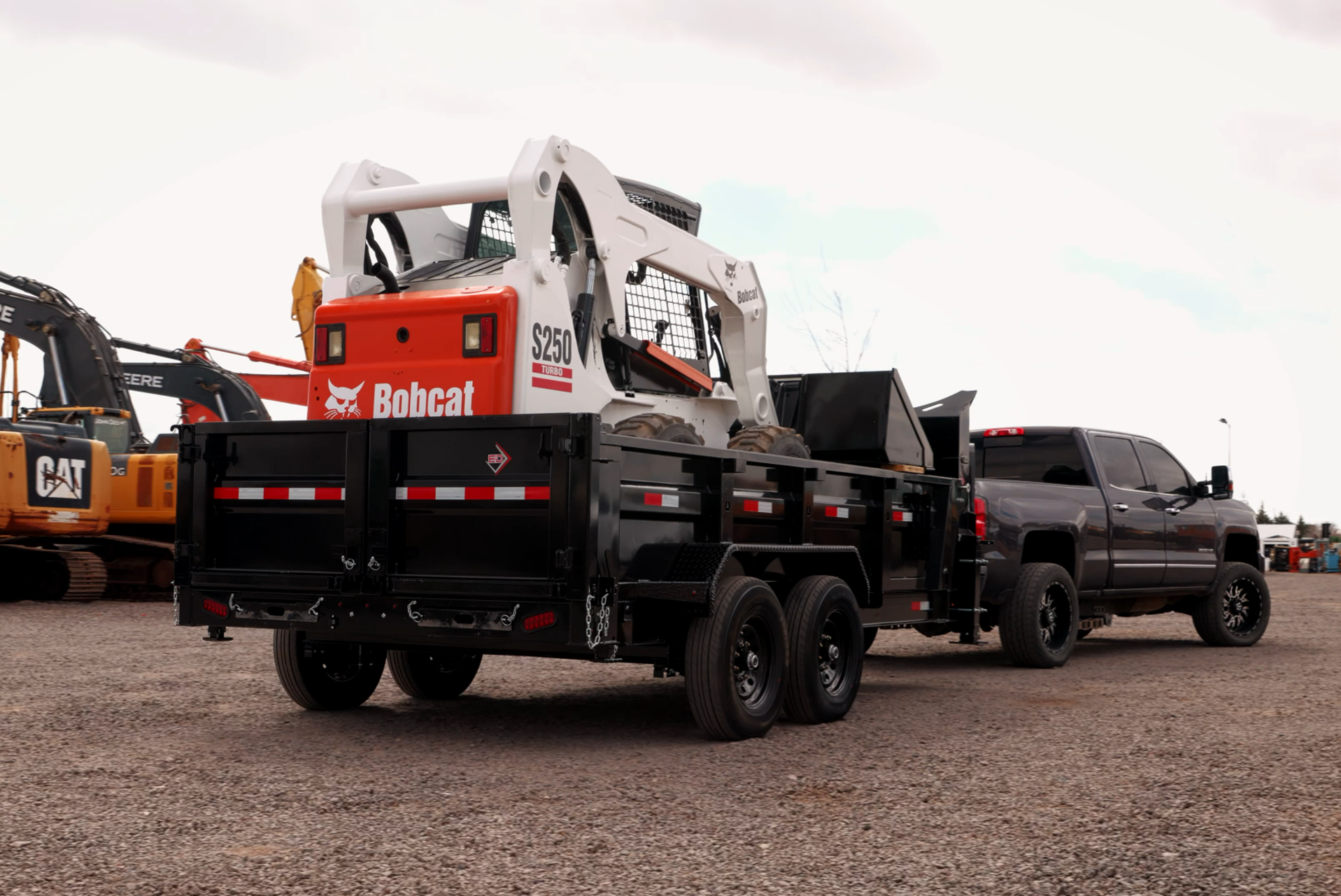

With its low-profile design and wide bed, loading skid steers and equipment is easier and more secure on the jobsite. The hydraulic scissor lift system, powered by a dependable 12V setup, provides smooth and consistent dumping performance even under heavy loads.
Built for everyday work, the LPT83-GN features a heavy-duty steel floor and reinforced frame construction designed to stand up to demanding use. Equipped with dual 7K axles and a 14,000 lb GVWR, it offers the hauling confidence needed for a wide range of applications.
Practical features in the design help improve efficiency in the field, including a quick and easy door latch system that allows for fast one-handed operation between loads.
Available in multiple lengths and side height options, the LPT83-GN adapts to the way you work while giving you the added towing stability and maneuverability that comes with a gooseneck trailer design.
