LPT83-BP

LPT83-BP LOW PRO DUMP TRAILER

QUICK OVERVIEW

BUMPERPULL

LENGHTS: 12' 14' 16'

WIDTH: 83"

SIDE HEIGHTS: 2' 3' 4'

PULL TYPE: BUMPERPULL

AXLE RATING: 7,000 Lbs

GVWR: 14,000 LBS

COMING SOON

FIND A DEALER

STANDARD FEATURES

TONGUE - CHASSIS

TONGUE - FRAME 12'

6" x 12 Lbs I-Beam Frame

TONGUE - FRAME 14' 16'

8" x 10 Lbs I-Beam Frame

TOOLBOX

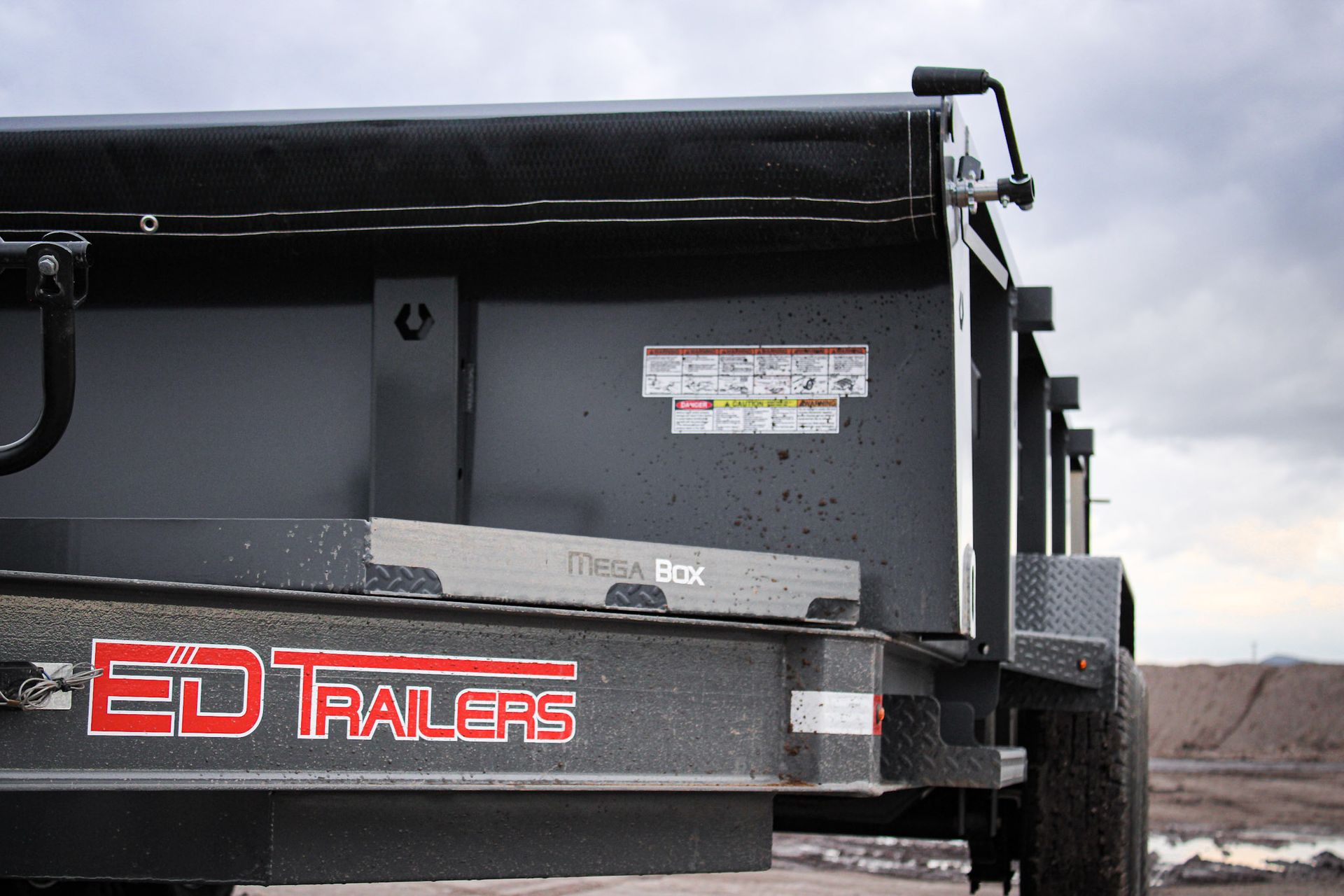

Lockable Toolbox (Houses Battery and Pump)

COUPLER

2 5/15" Adjustable Coupler

JACK

1 - 10,000 Lbs Drop Leg Jack

SAFETY CHAINS

3/8" G70 Safety Chains

DUMP

BED WIDTH

83"

SIDE WALL

2' 3' 4' High Sides, 12GA. Side Walls

FLOORING

7GA. Steel Floor

D-RINGS

4 D-Rings Welded Inside Box

GATE

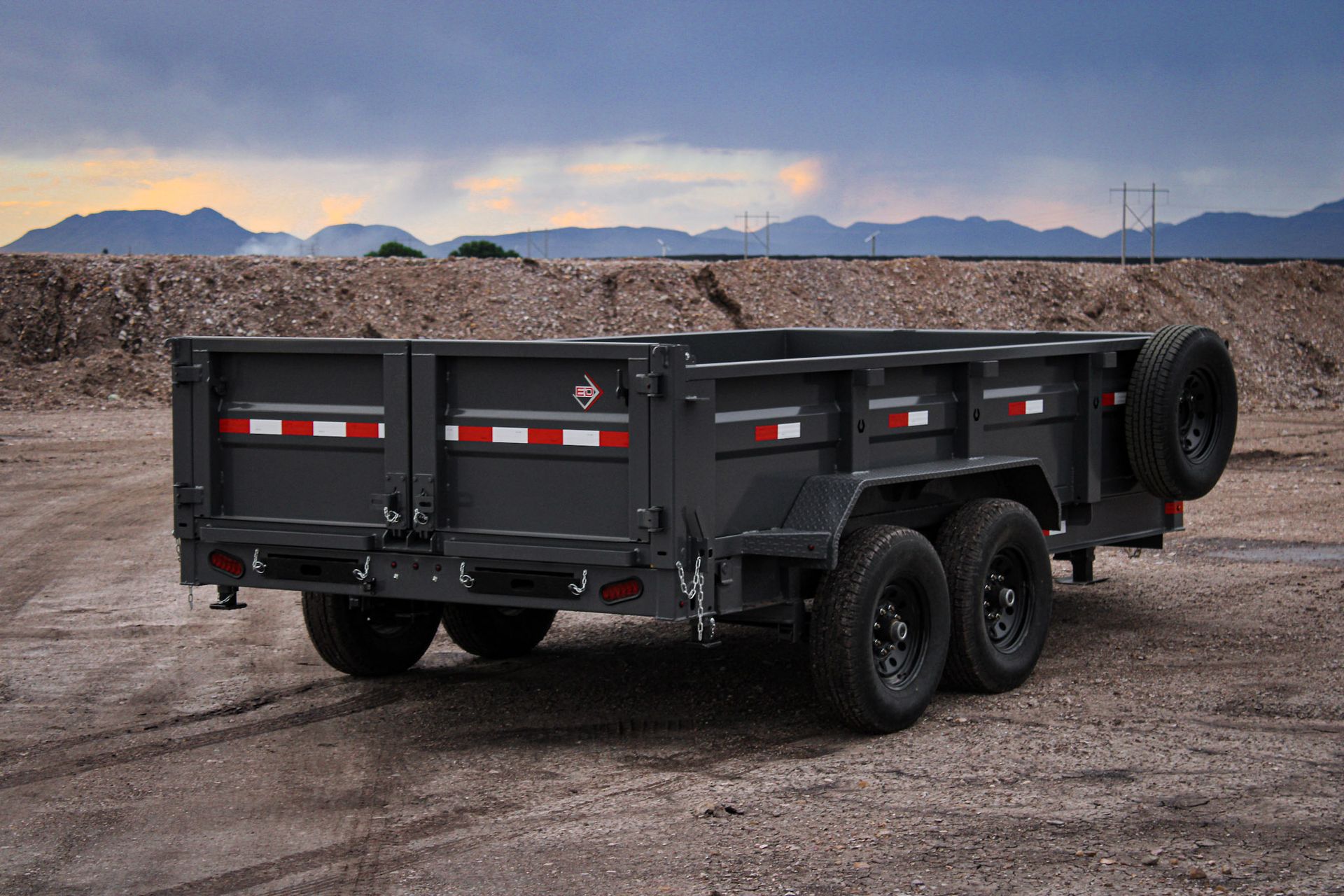

2 Way Gate (Barn Doors & Spreader Gate)

RAMPS

6' Slide In Ramps

SPARE

Bolt On Spare Tire Mount

TARP

Manual Tarp Kit

LIFT SYSTEM

SINGLE CYLINDER 12' 14'

5" X 16" Cylinder

SINGLE CYLINDER 16'

6" X 21" Cylinder

HYDRAULIC PUMP

2 Button Hydraulic Pump (Power Up / Down)

RUNNING GEAR

TIRES

4 - ST235/80/R16 Tires

RIMS

16" Black Spoke Wheels

AXLES

2 - 7,000 Lbs Bostail Electric Brake Axles

SUSPENSION

Spring

ELECTRICAL AND LIGHTING

BATTERY

27 Deep Cycle Battery

LIGHTS

DOT Approved LED Lights

FINISH

PREP

Sandblast

PAINT

Powdercoat

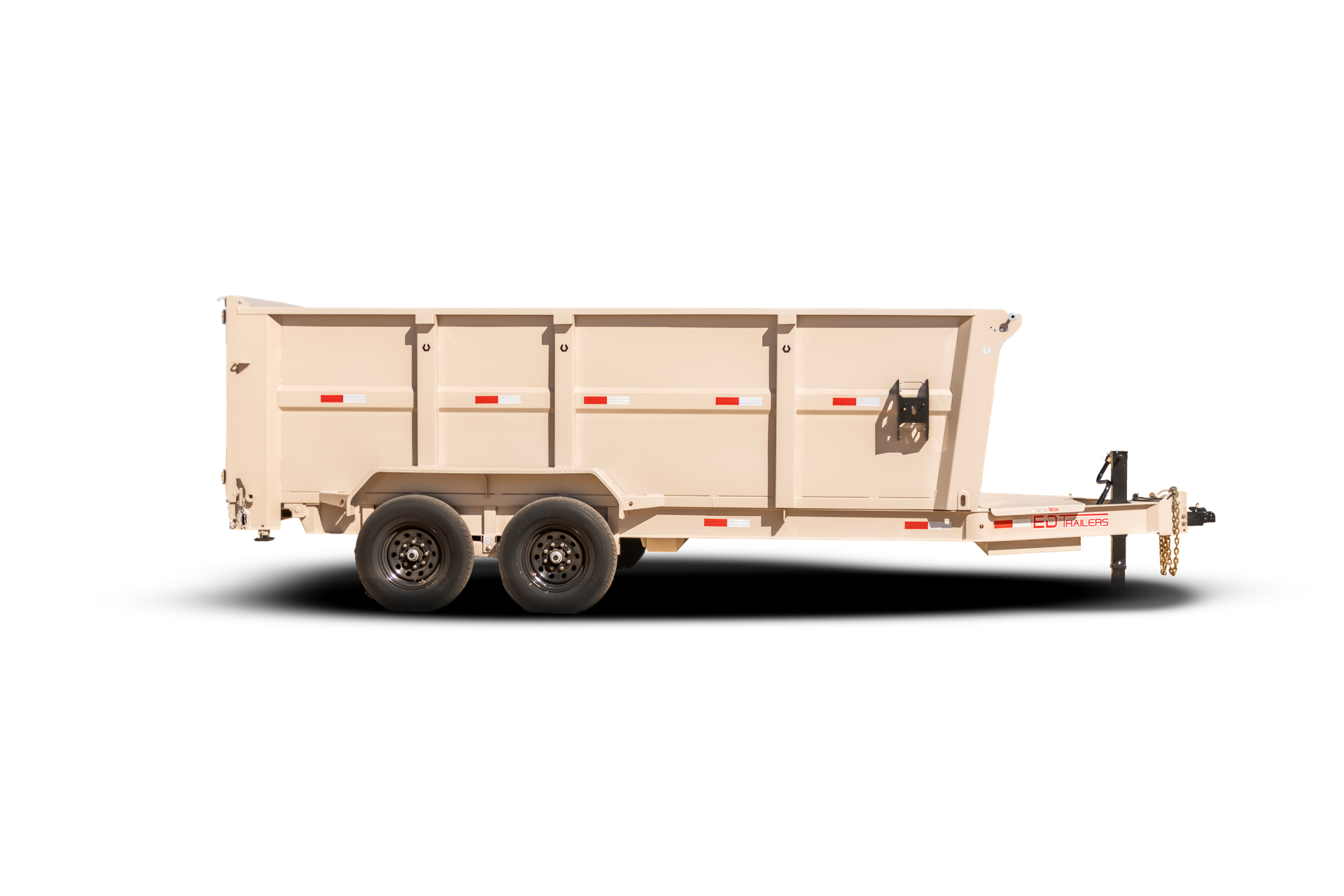

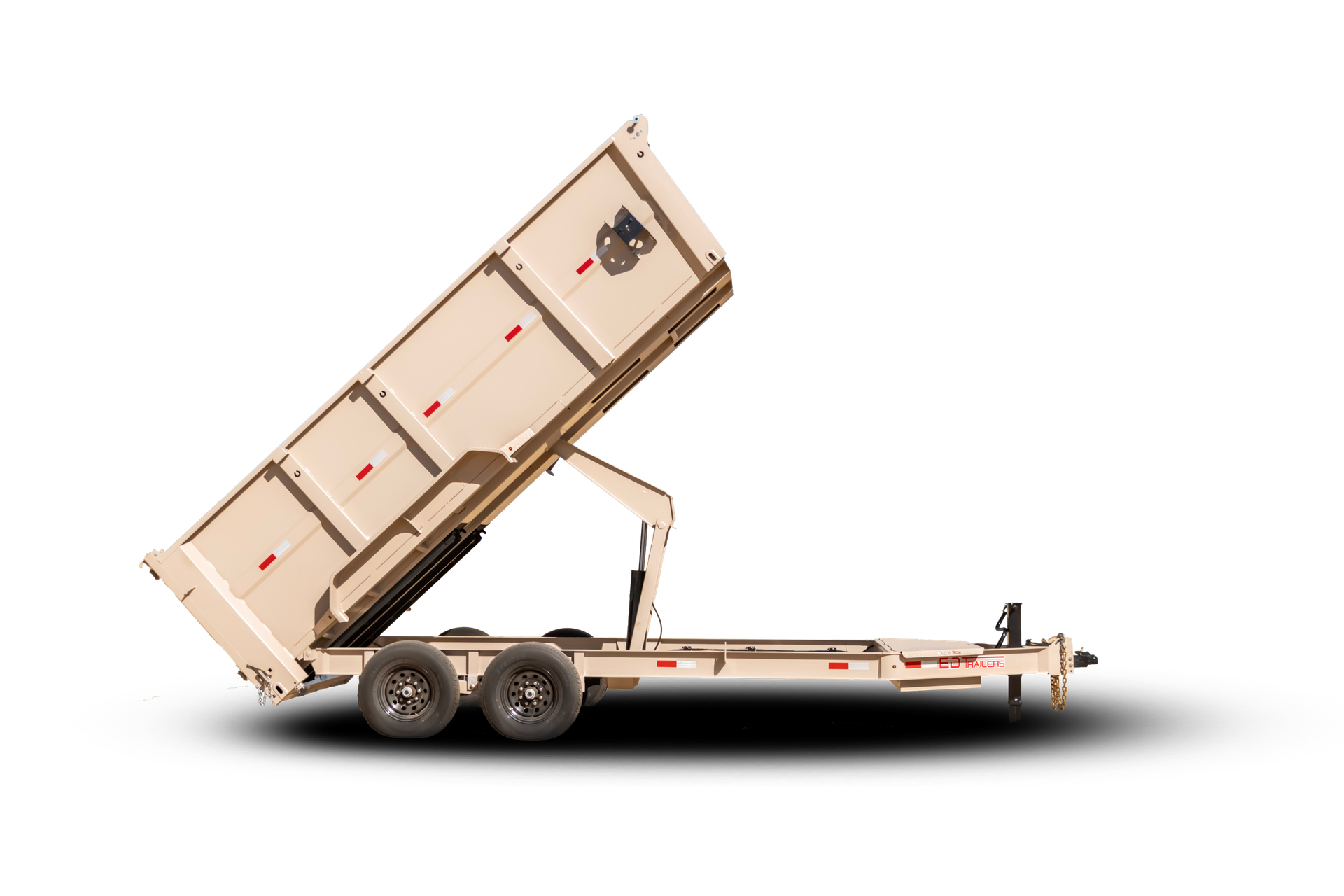

COLORS

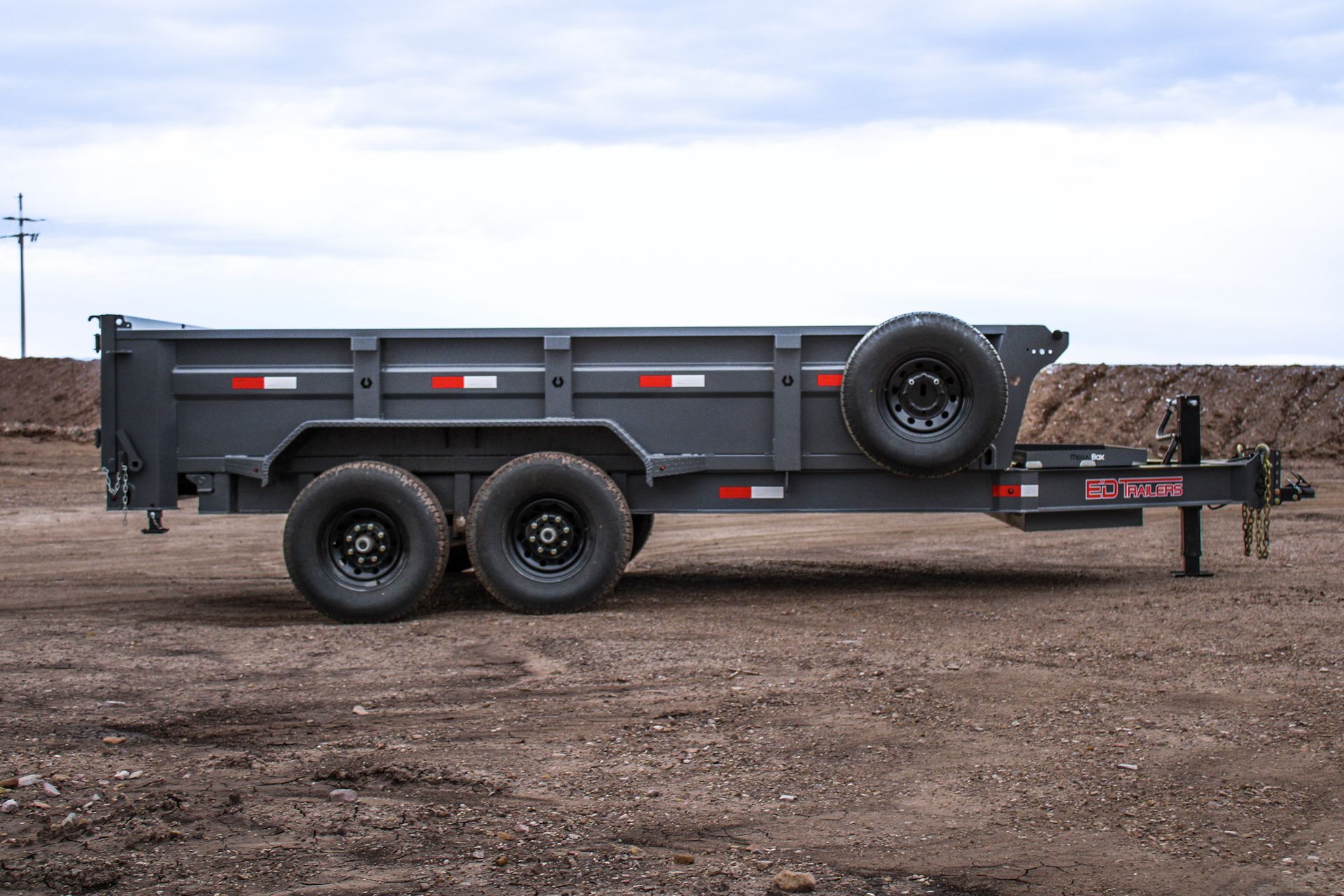

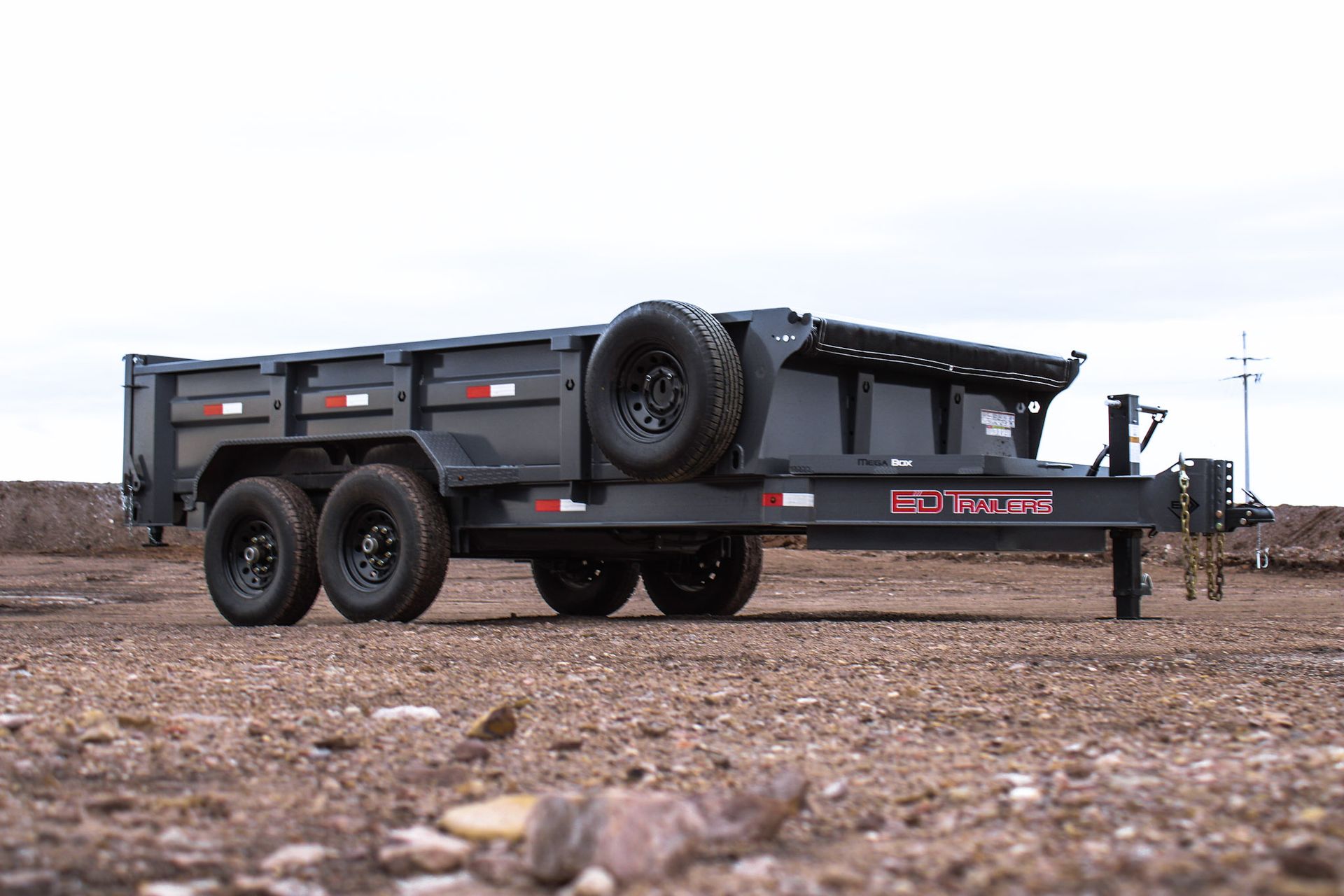

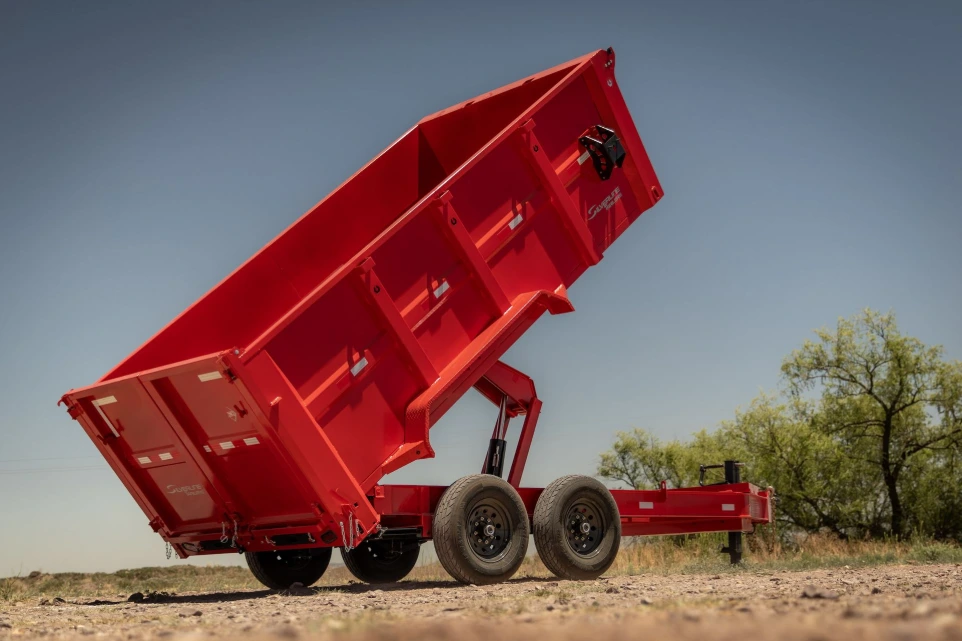

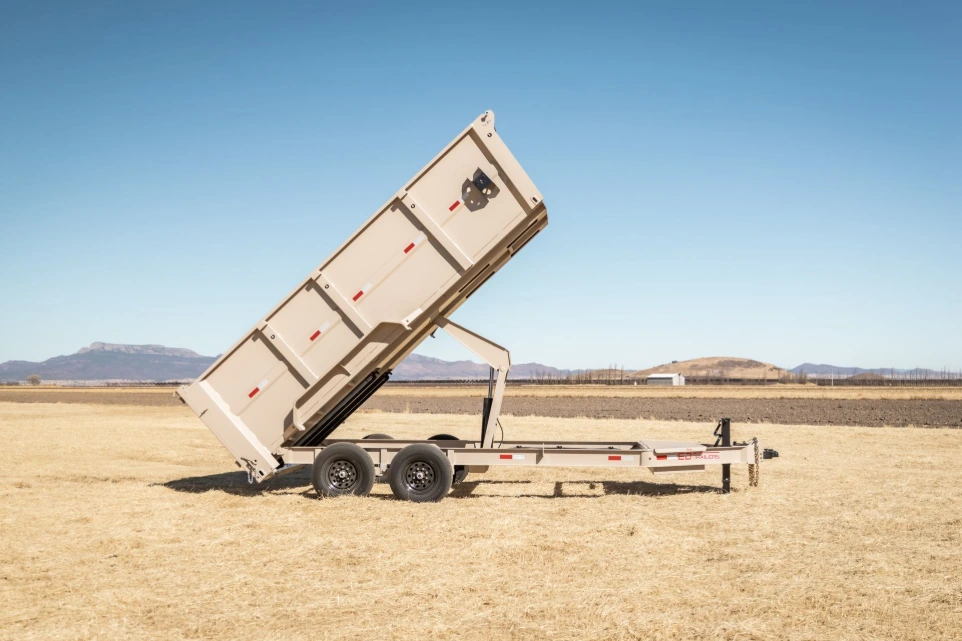

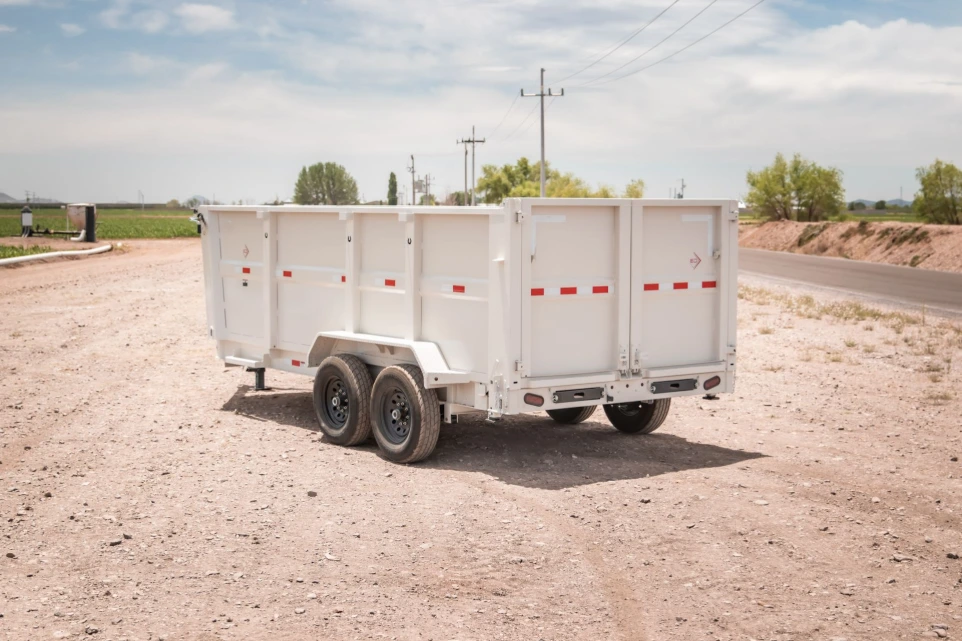

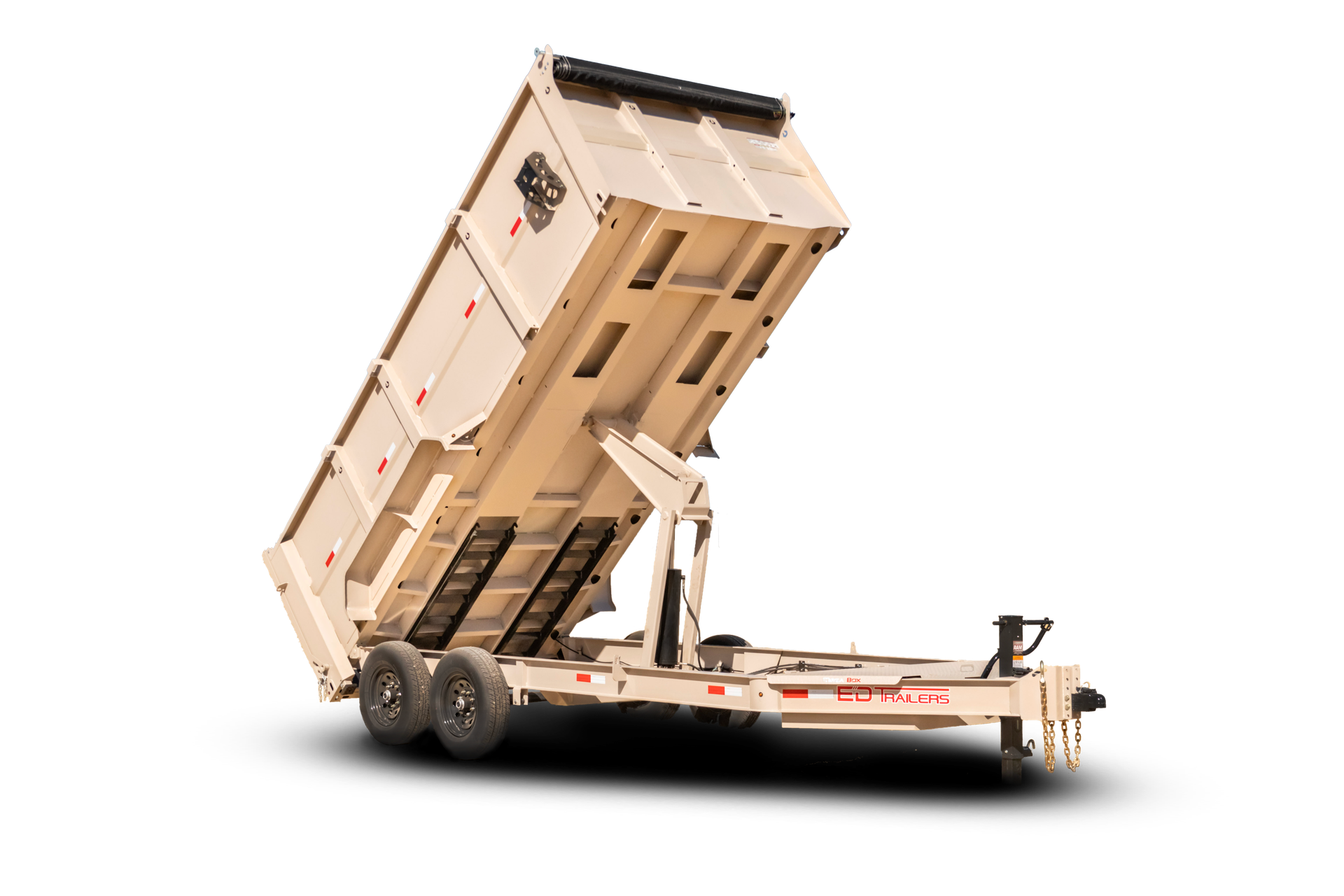

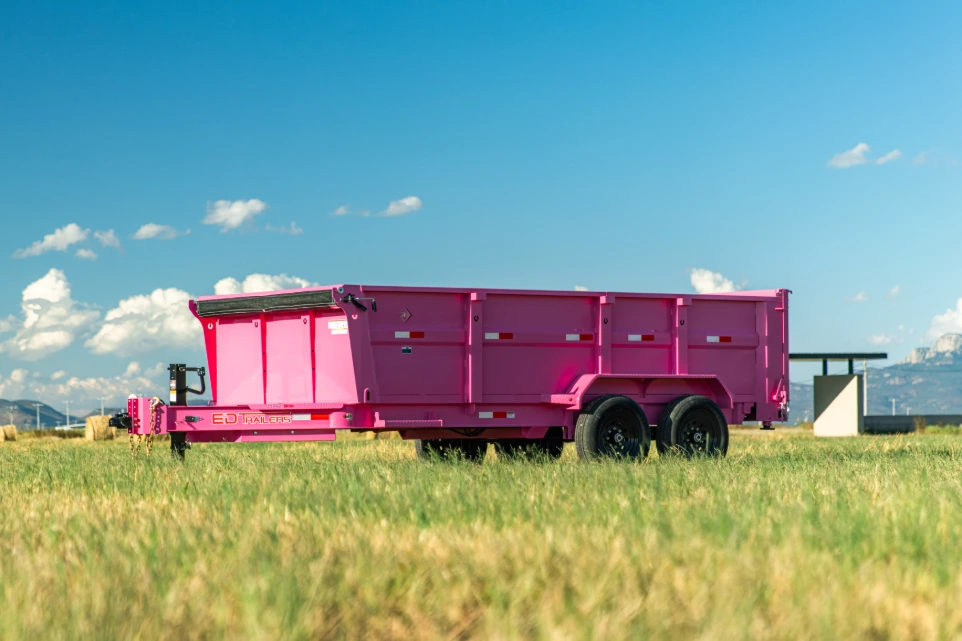

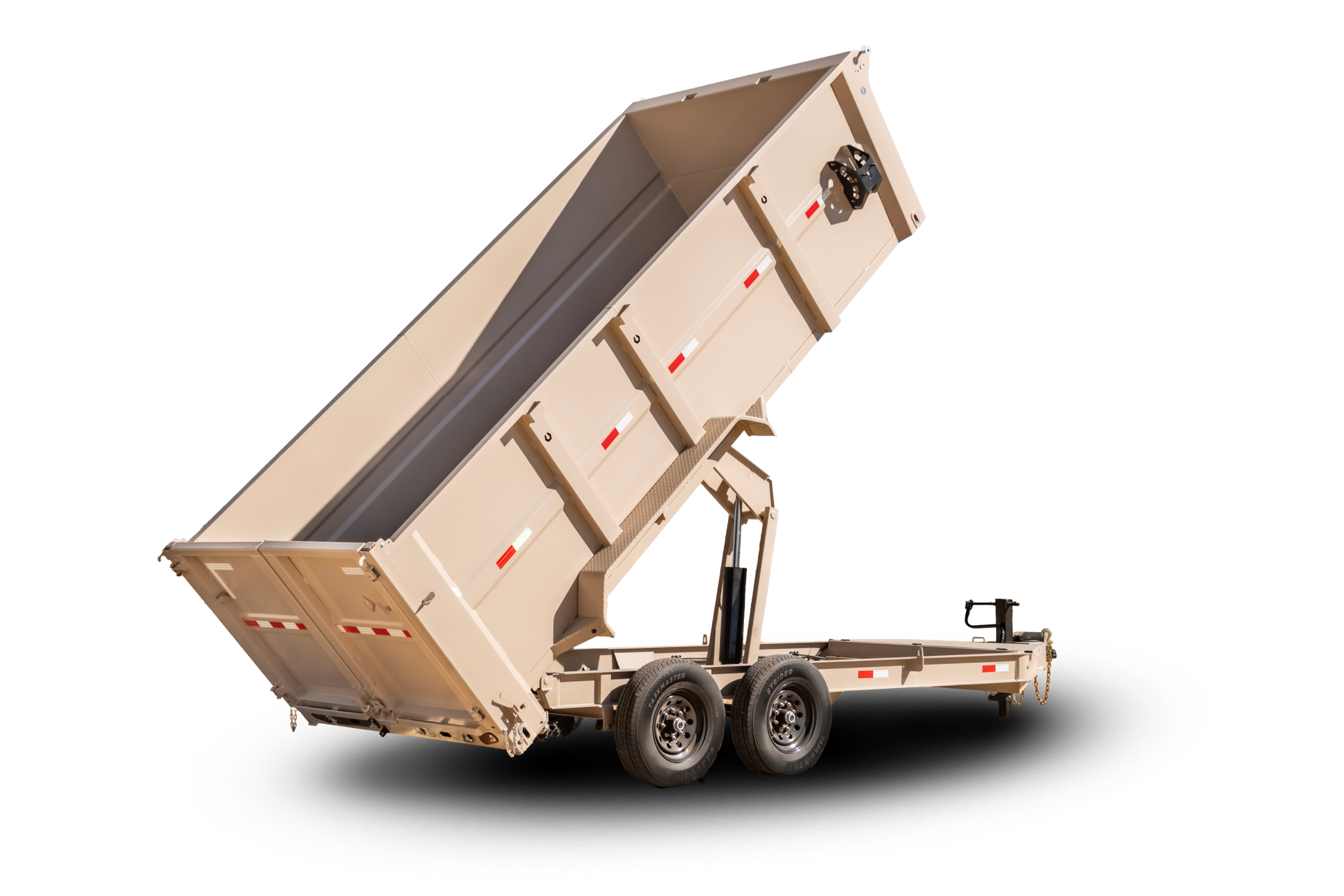

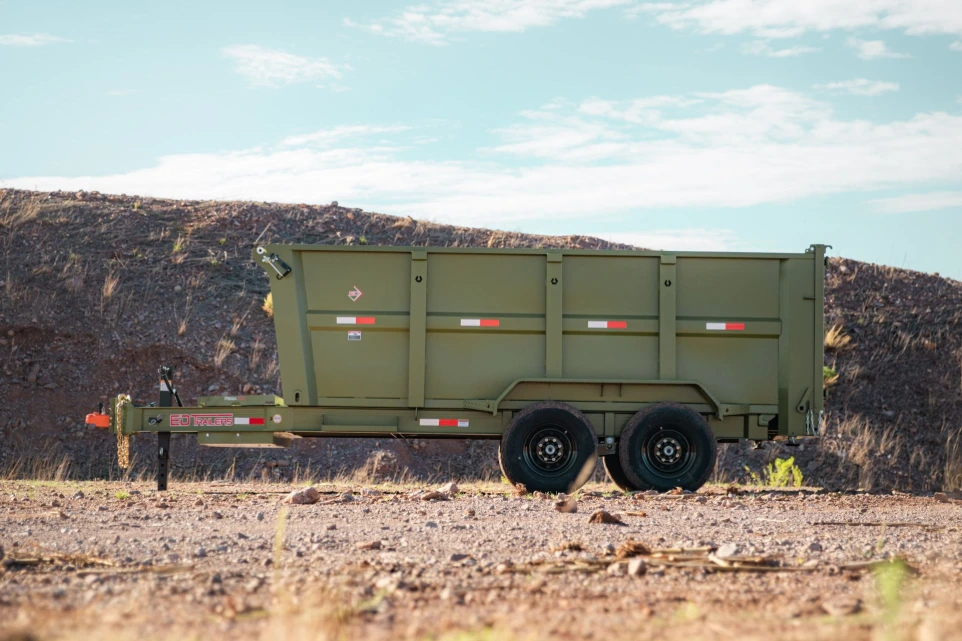

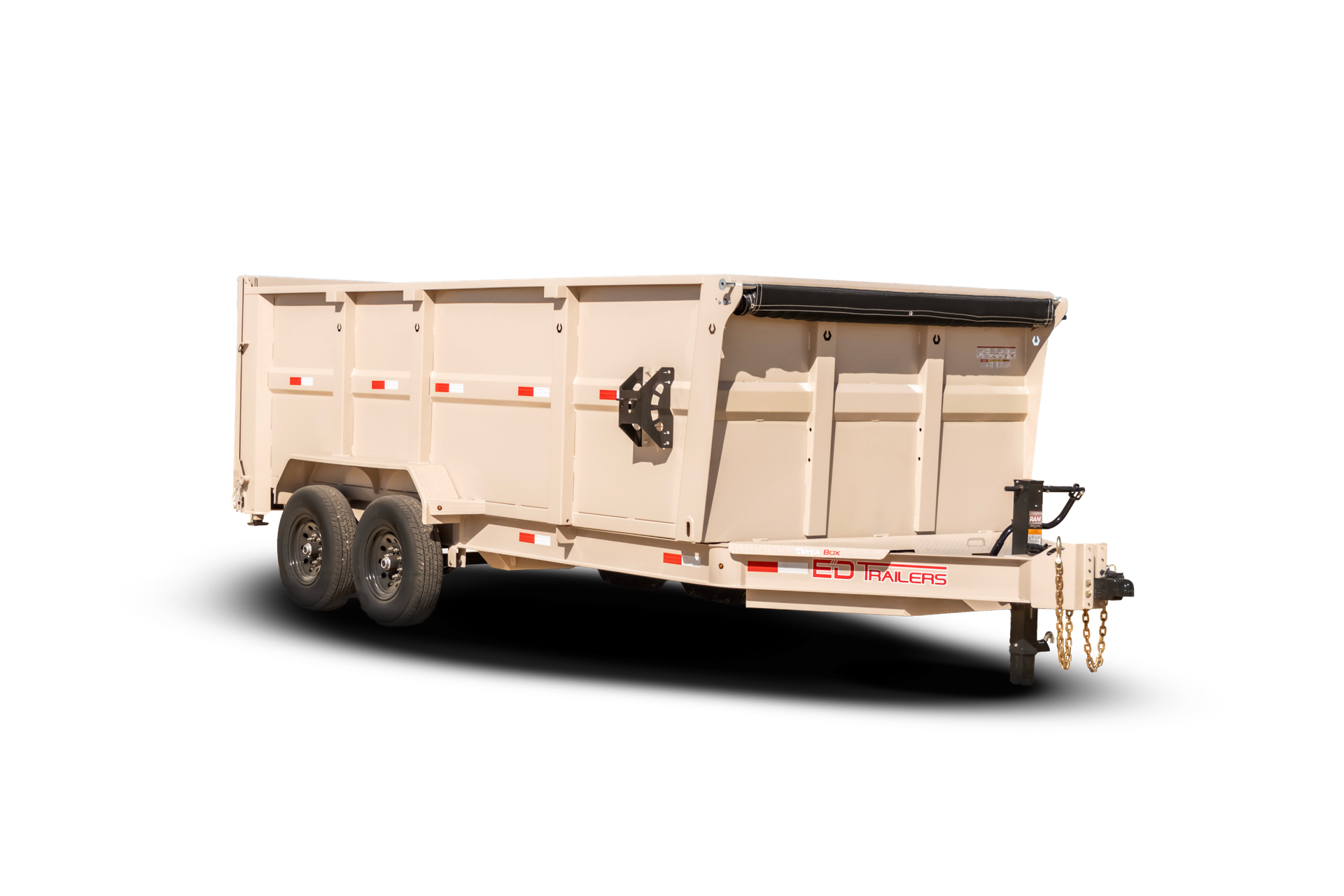

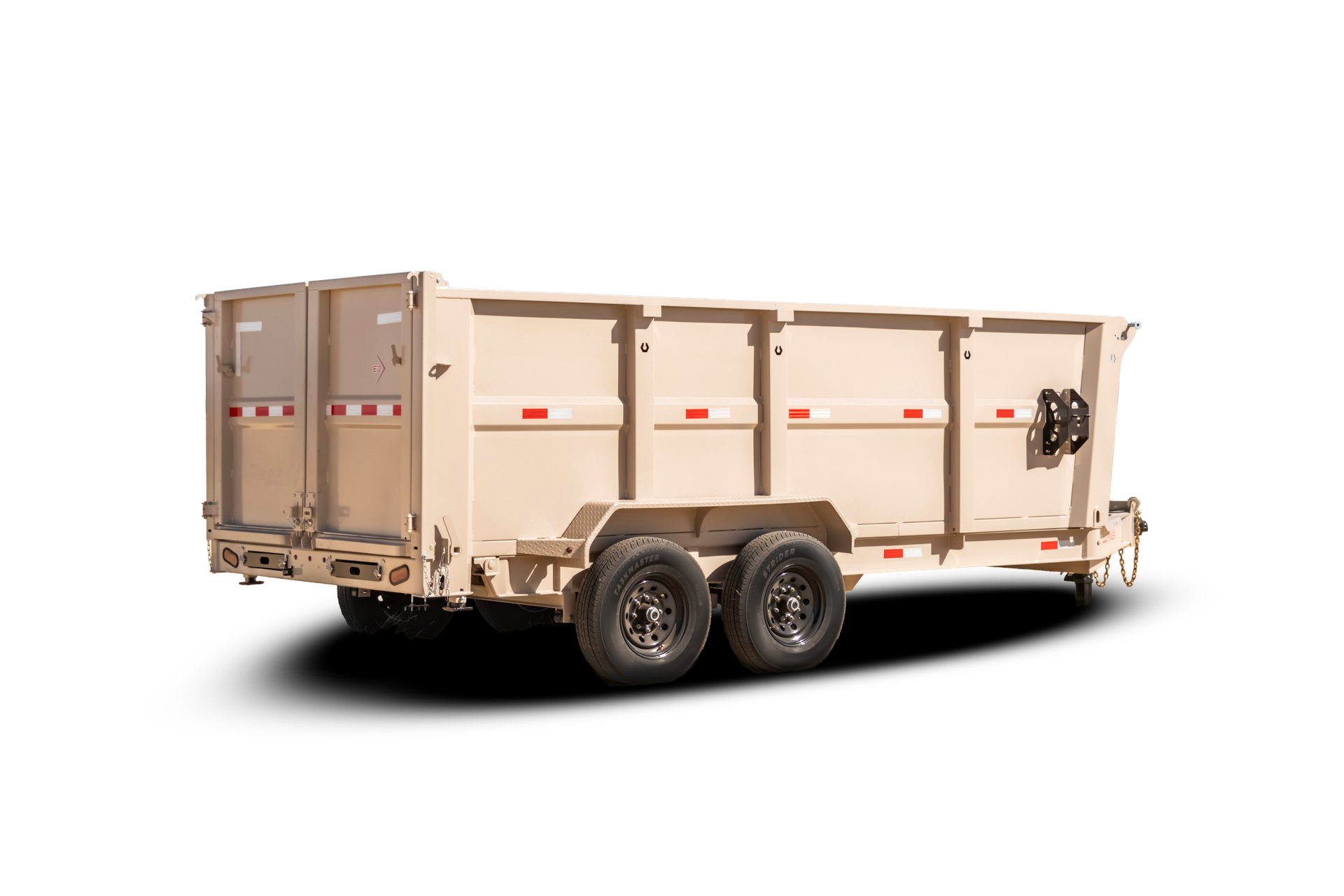

LPT83-BP Low Pro Dump Trailer

The LPT83-BP is a low-profile, all-purpose dump trailer built for hauling equipment, gravel, debris, and more — without slowing down your workflow.

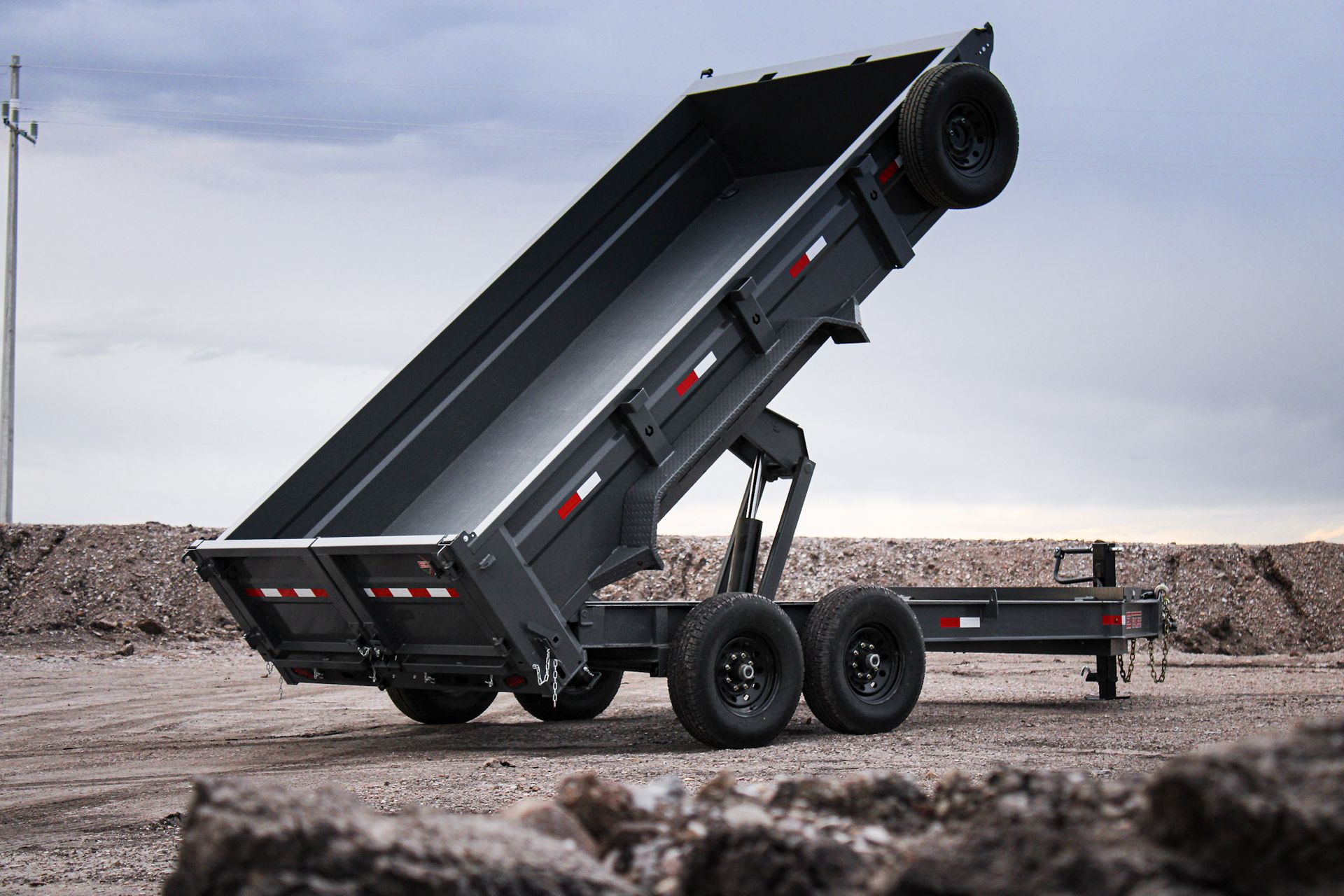

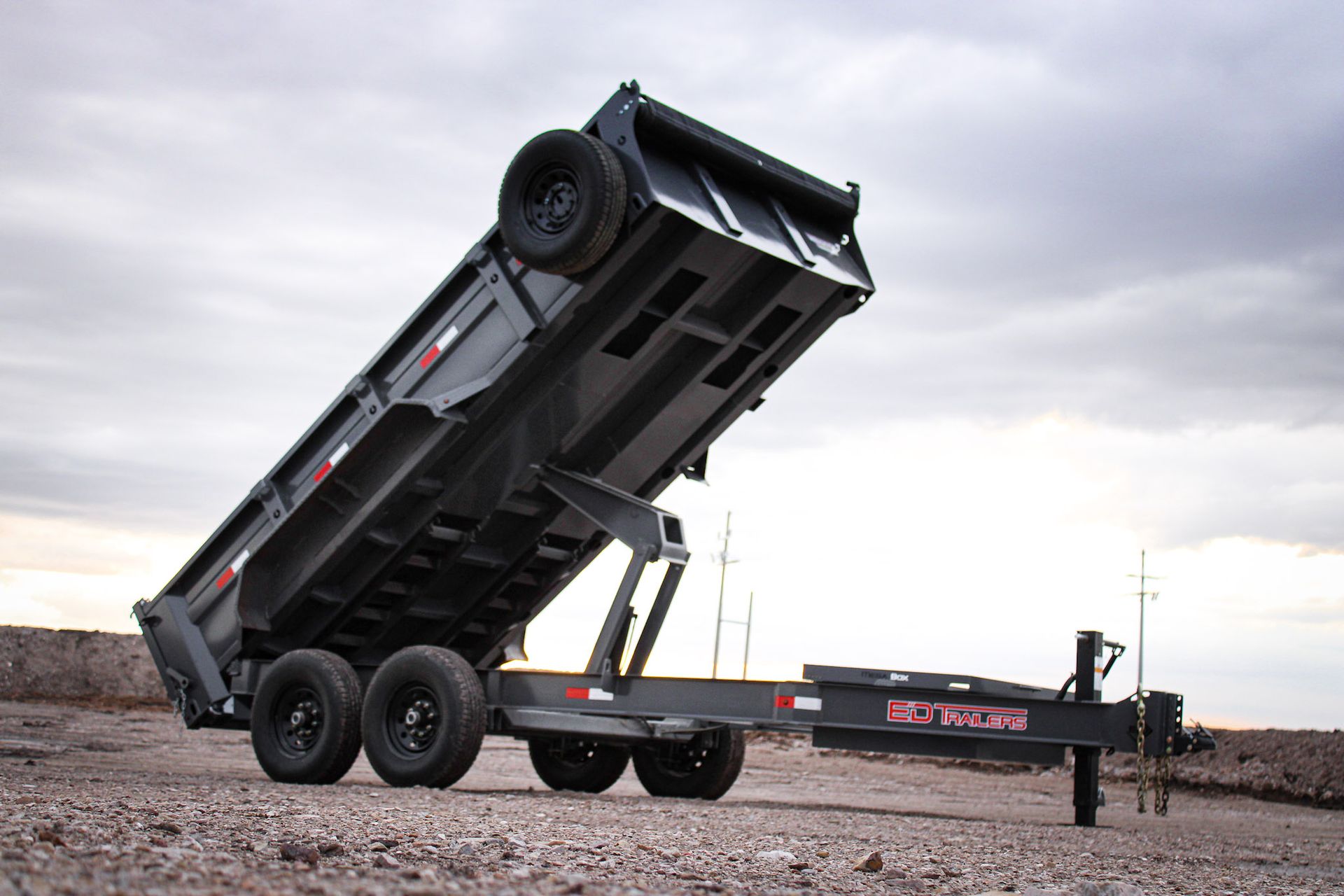

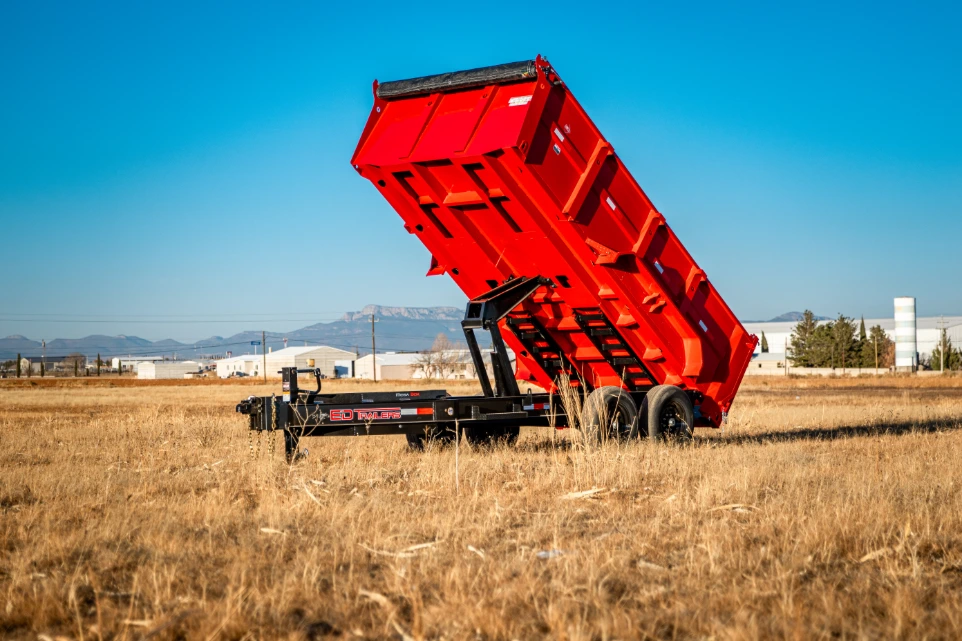

Designed with an 83” wide bed and a low loading angle, it makes loading skid steers and equipment easier and safer on the job. The scissor lift system, powered by a reliable 12V hydraulic setup, delivers smooth and consistent dumping even under demanding loads.

Built to handle real work, the LPT83-BP features a heavy-duty steel floor and a solid frame designed for everyday use. Twin 7K axles and a 14,000 lb GVWR give you the capacity to take on a wide range of jobs with confidence.

Details in the design make a difference in the field — including a door latch system that allows for quick, one-handed operation, helping you save time between loads and keep moving.

Available in multiple lengths and side height options, the LPT83-BP adapts to the way you work.
