PTDO102-BP 8" I-BEAM POWER TILT DECKOVER

QUICK OVERVIEW

BUMPERPULL

LENGHTS:  20' - 24'

WIDTH: 102"

PULL TYPE:  BUMPERPULL

AXLE RATING:  7,000 Lbs

GVWR:  14,000 LBS

STANDARD FEATURES

TONGUE - FRAME

8" x 10 Lbs I-Beam Frame

TOOLBOX

Lockable Toolbox (Houses Battery and Pump)

COUPLER

2 5/16" Adjustable Coupler

JACK

1 - 10,000 Lbs Drop Leg Jack

SAFETY CHAINS

3/8" G70 Safety Chains

BED WIDTH

102"

BED FRAME

8" x 10 Lbs I-Beam Frame

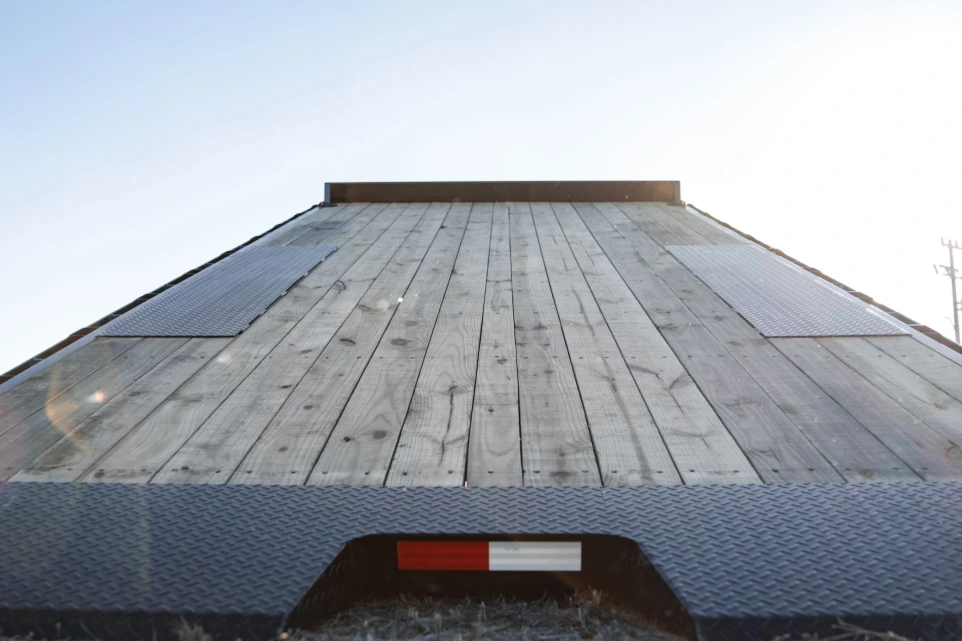

FLOORING

Pine Lumber Floor / Diamond Plate Floor

D-RINGS

4 D-Rings

SPARE

Bolt On Spare Tire Mount

FENDERS

Diamond Plate Fender

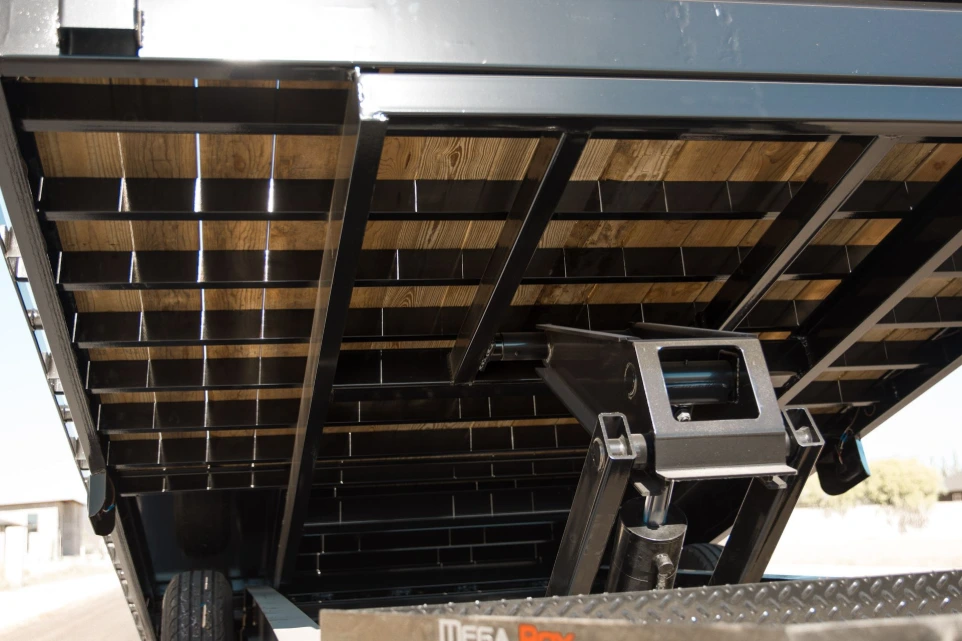

CROSSMEMBERS

3" Channel 16" Spacing

SINGLE CYLINDER

5" X 10" Cylinder

HYDRAULIC PUMP

2 Button Hydraulic Bostail Pump (Power Up / Power Down)

TIRES

4 - ST235/80/R16 10PLY Tires

RIMS

16" Black Spoke Wheels

AXLES

2 - 7,000 Lbs Bostail Electric Brake Axles

SUSPENSION

Spring

LIGHTS

DOT Approved LED Lights

PREP

Sandblast

PAINT

Powdercoat

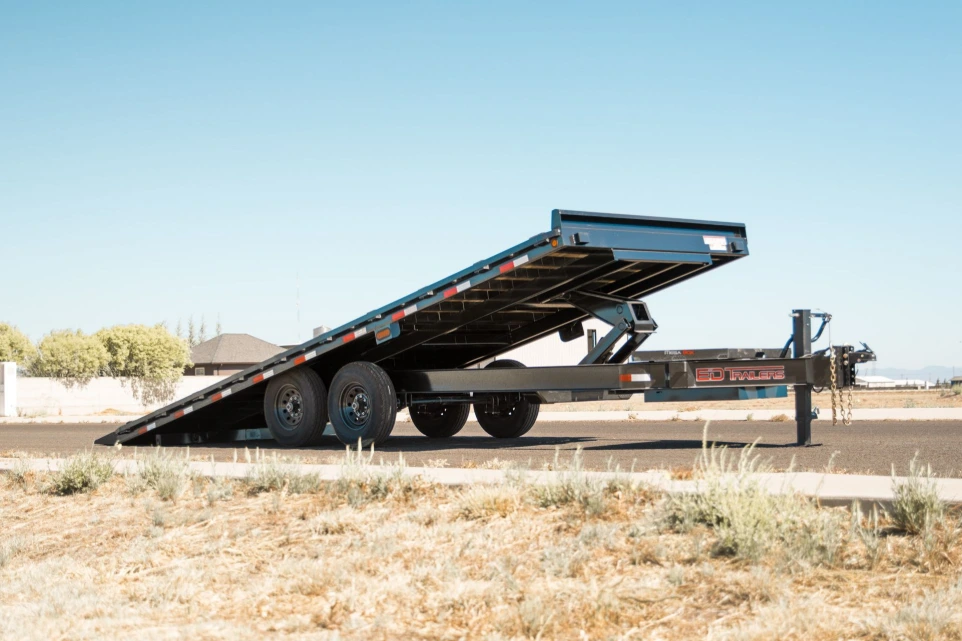

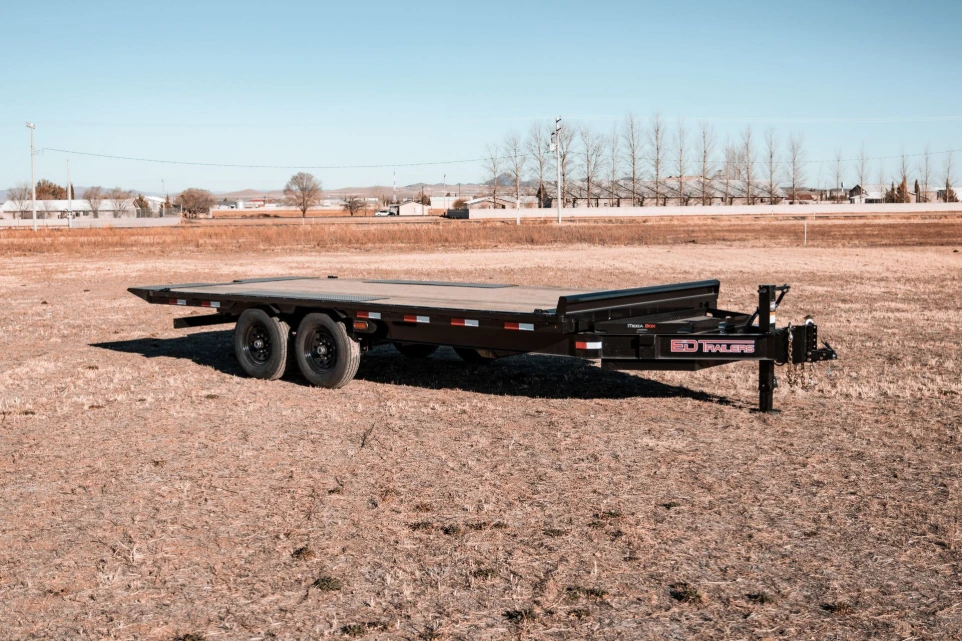

PTDO102-BP 8" I-Beam Power Tilt Deckover

The PTDO102-BP 8" I-Beam Power Tilt Deckover is designed to make loading heavy equipment faster, safer, and more efficient. Combining the strength of a rugged 8-inch I-beam frame with the convenience of a hydraulic power tilt deck, this trailer eliminates the need for loading ramps, reducing setup time and simplifying every job.

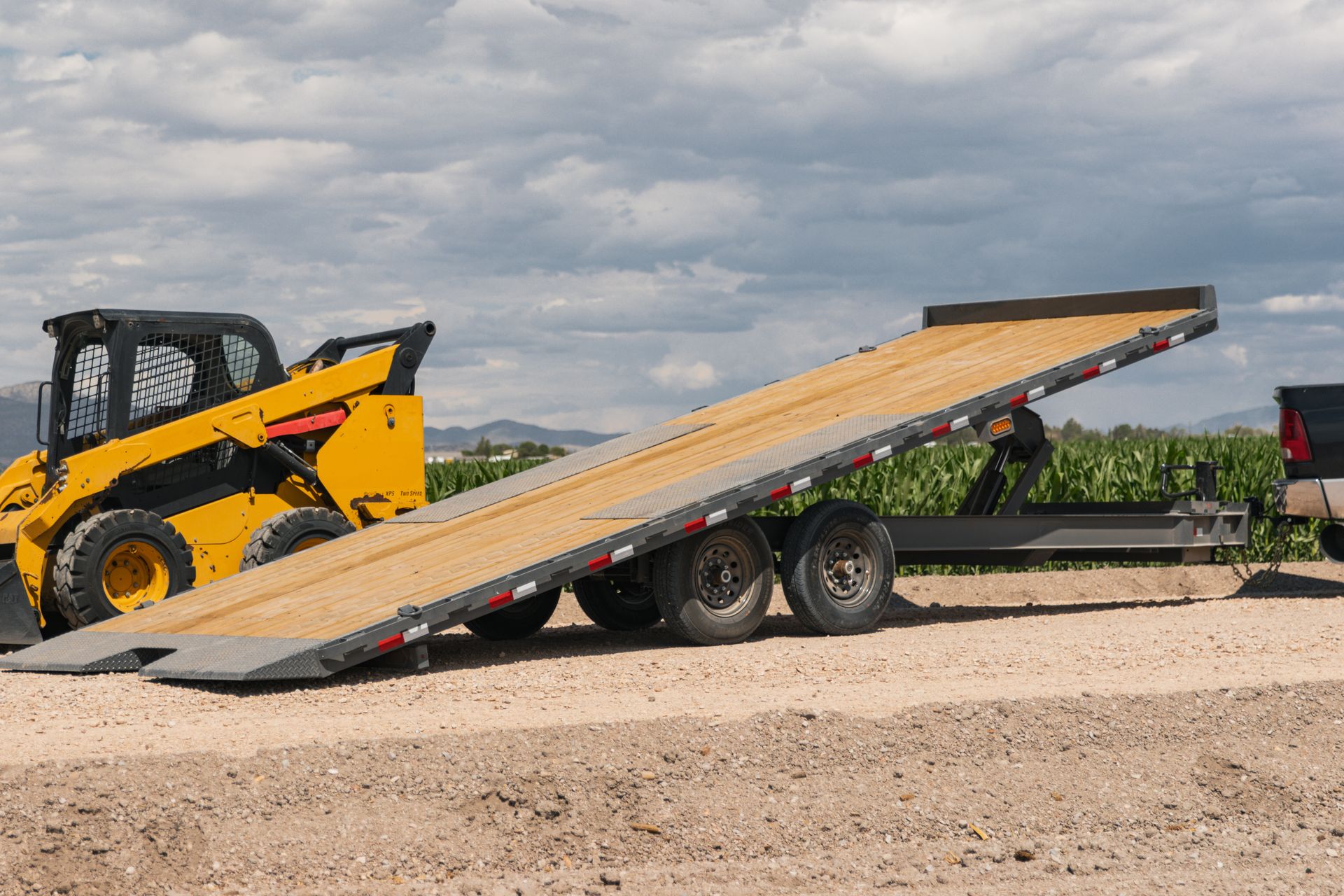

Its 102-inch wide deck provides ample space for transporting skid steers, tractors, scissor lifts, compact excavators, and other heavy equipment. The power tilt system creates a smooth loading angle at the push of a button, allowing operators to load and unload equipment quickly while minimizing the risk of damage to machines with low ground clearance.

Built for contractors, equipment rental companies, agricultural operations, and commercial fleets, the PTDO102-BP is engineered to withstand demanding daily use. The heavy-duty I-beam construction delivers outstanding structural strength, while the deckover design provides maximum deck width for hauling larger equipment and oversized materials with confidence.

When productivity, durability, and ease of operation matter, the PTDO102-BP 8" I-Beam Power Tilt Deckover is built to help professionals spend less time loading and more time getting the job done.


EXPLORE OTHER POPULAR TRAILERS

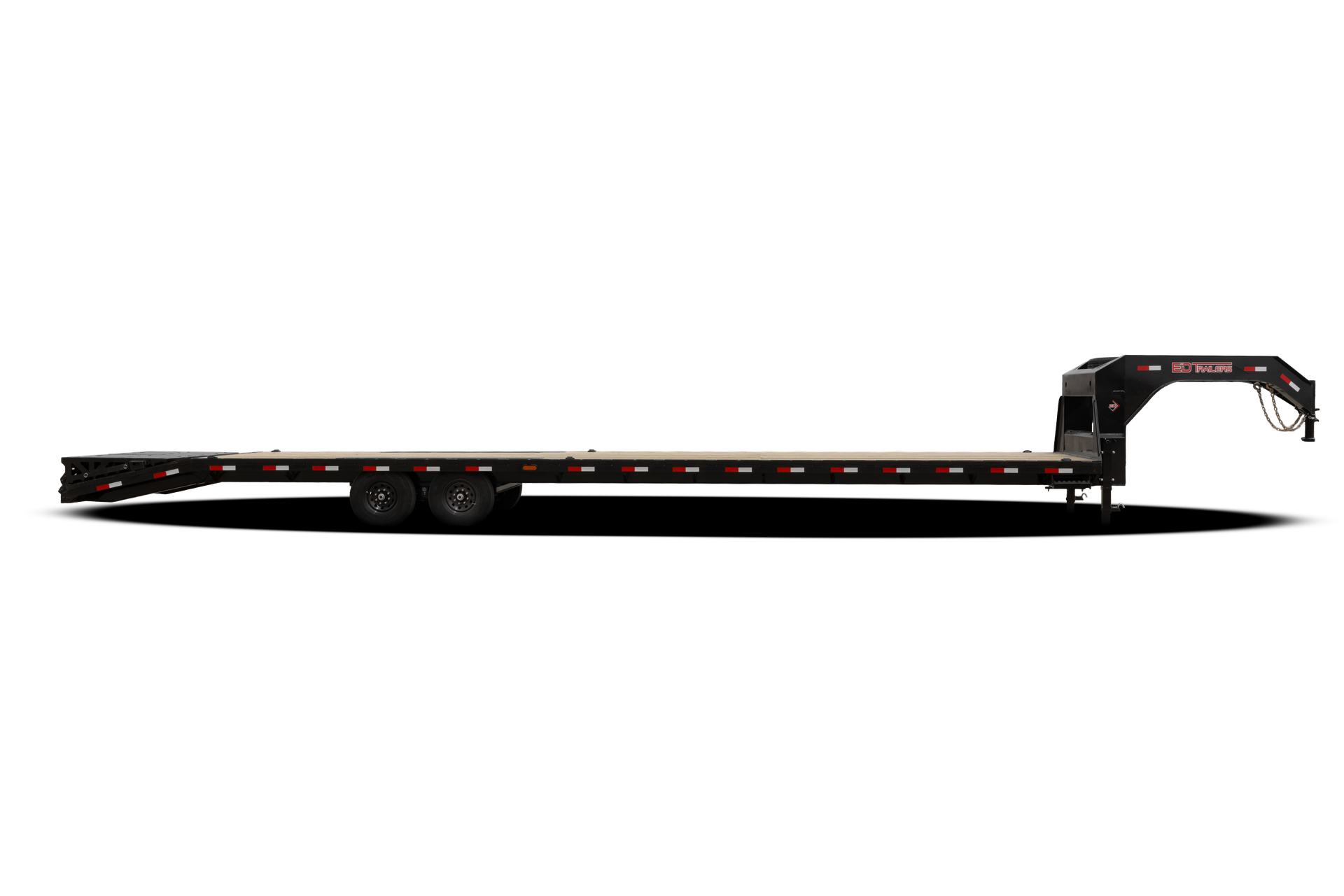

FD102-GN

12" I-BEAM FLAT DECK
VIEW
  • TYPE: GOOSENECK
  • WIDTH: 102"
  • LENGHT: 25' - 40'
  • AXLE RATING: 10.0K

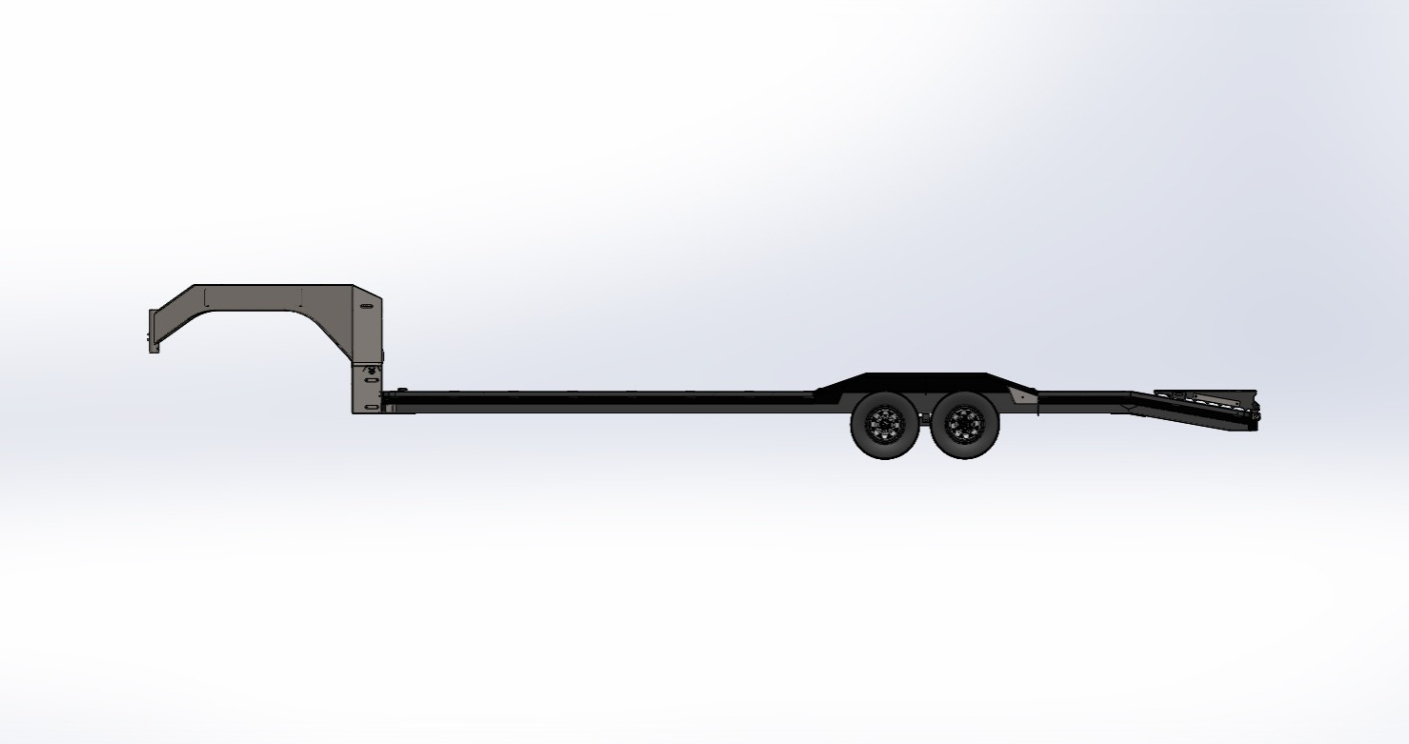

EC10102-GN
